Digital indicators allow the user to view diverse parameters such as temperature, humidity, vibration, normalized signals, etc. Digital indicators are considered excellent at collecting data in process control applications.
The dial indicator is used to indicate the run-out (the misalignment between the workpiece's axis of rotational symmetry and the axis of rotation of the spindle) of the workpiece
Applications of Indicators
-Monitoring liquid wastes
-Swimming pools
-Soils
-Laboratory
View Dial & digital indicators products

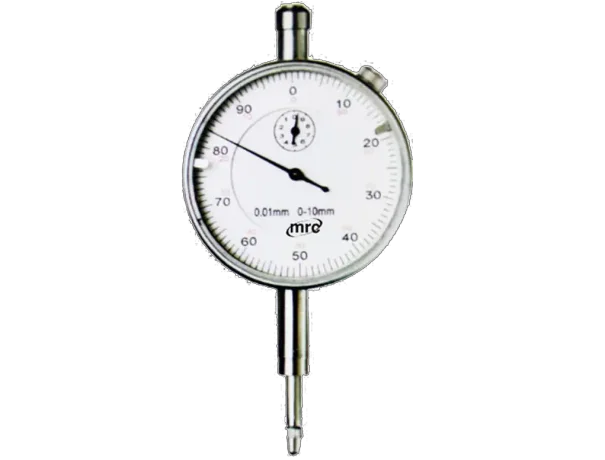

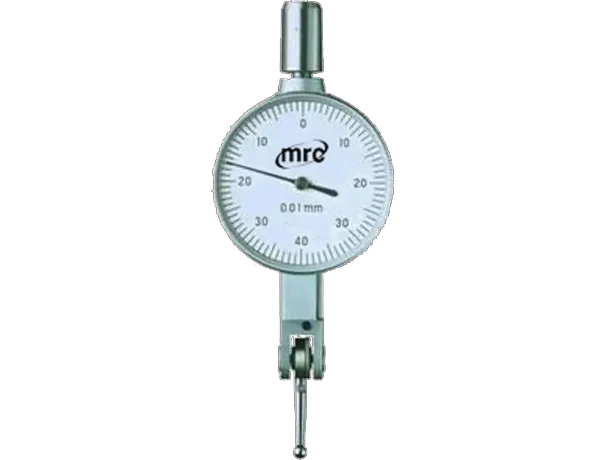

What is a Dial Indicator?
A dial indicator, also known as a dial gauge, is a mechanical instrument used to measure small linear distances with high accuracy. It typically consists of a needle or pointer attached to a spindle, which moves in response to changes in the measured dimension. The movement of the needle is amplified and displayed on a circular dial, allowing for precise readings.
Components of a Dial Indicator:
-Dial face with graduated markings
-Needle or pointer
-Spindle
-Contact point or probe
-Bezel for zero adjustments
-Mounting attachments
What is a Digital Indicator?
A digital indicator, on the other hand, is an electronic measuring instrument that provides digital readouts of measurements. Unlike dial indicators, which rely on mechanical mechanisms for measurement, digital indicators utilize electronic sensors and display screens to provide accurate and easy-to-read measurements. They offer features such as absolute and incremental measurement modes, tolerance settings, and data output capabilities.
Components of a Digital Indicator:
Digital display screen
Measurement buttons or controls
Electronic sensors
Battery compartment
Data output ports (in some models)
Comparison of Digital Indicator and Dial Indicator
When comparing digital and dial indicators, several factors come into play, influencing their suitability for different applications.
Accuracy:
Digital indicators typically offer higher accuracy levels compared to dial indicators due to their electronic measurement mechanisms. They eliminate the potential for human error in reading and interpreting measurements, resulting in more precise results.
Precision:
Both can provide high-precision measurements. However, digital indicators may have an edge in terms of repeatability and consistency, as they are less susceptible to mechanical wear and variations.
Ease of Use:
Digital indicators are often preferred for their user-friendly interface and intuitive operation. They eliminate the need for manual interpretation of dial readings, making them easier to use, especially for less experienced operators.
Durability:
Dial indicators are known for their robust mechanical construction, making them suitable for rugged industrial environments. However, digital indicators with durable housings and protective features can also withstand harsh conditions effectively.
