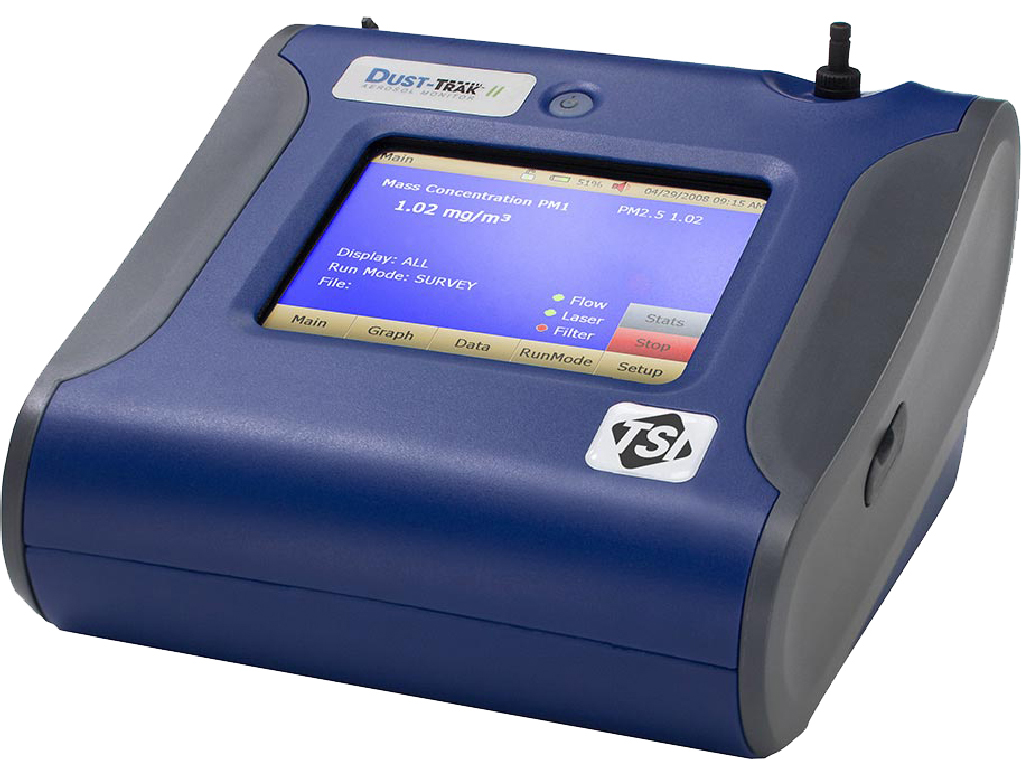

The DustTrak™ II Aerosol Monitor 8530 is a desktop battery-operated,
Aerosol concentration range 0.001 to 400 mg/m3
data-logging, single-channel,
light-scattering laser photometer that gives you
real-time aerosol mass readings and collects a gravimetric sample
It is suitable for clean office settings as well as harsh industrial workplaces,
construction and environmental sites,
and other outdoor applications.
The DustTrak II Aerosol Monitor measures aerosol
contaminants such as dust, smoke, fumes, and mists
Measure aerosol concentrations corresponding to
PM1, PM2.5, respirable, PM10 or size fractions
STEL alarm setpoint
TrakPro data analysis software
Automatic zeroing (with optional zero module) minimizes the effect of zero drift
Perform in-line gravimetric sampling for custom reference calibrations
Manual and programmable data logging functions
Aerosol concentration range 0.001 to 400 mg/m3
Desktop unit with battery and AC adapter
Optional environmental enclosure available
Included Items
Carrying case
Analog outputs
Touchscreen interface
Rechargeable 7800 mAH Li-Ion battery
Switching power supply with universal line cords
TrakPro™ data analysis software CD
Zero filter
USB (device and host) computer cable
Analog/alarm output connector
Inlet cap (x2)
37-mm gravimetric sample cassette with mesh filter
10-mm nylon Door-Oliver Cyclone
Impactor kit (with PM1, PM2.5, PM4, PM10 impactors)
Impactor plates (x2) and impactor oil
Sample extension tube (3-ft/1-m)
Sheath air HEPA filters (x4)
Filter removal tool
Operation service manual
Calibration certificate
