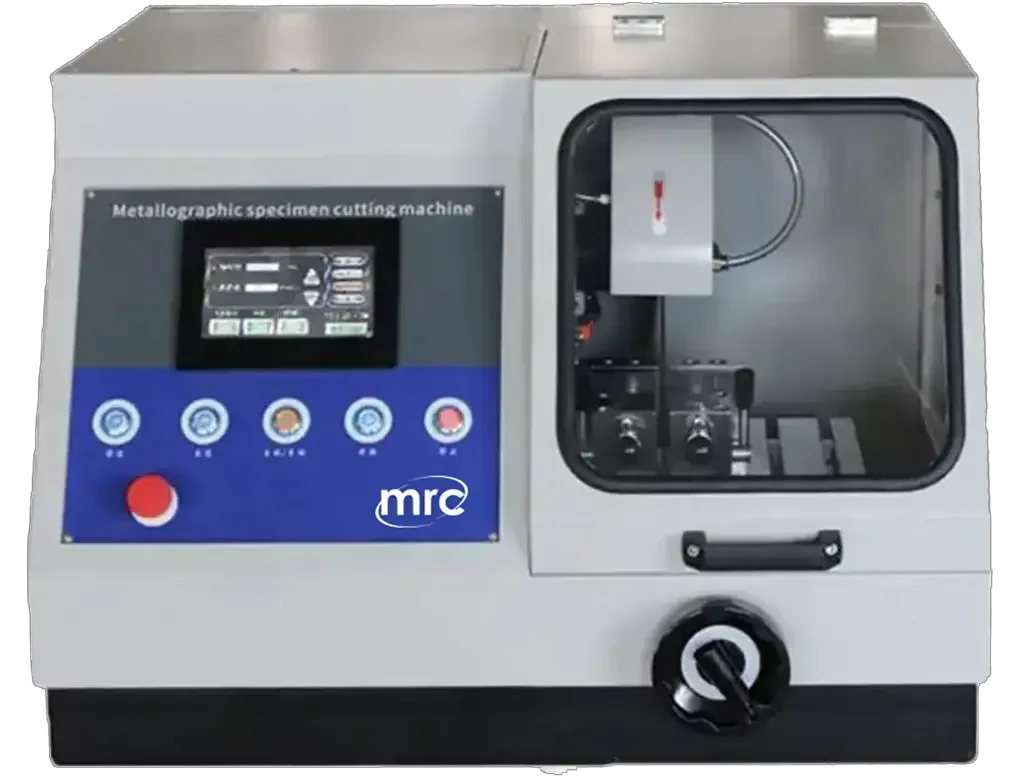

Auto Metallographic Sample Cutter with Cooling Tank
Input voltage : AC380V/50HZ/3Ph; (Optional: AC220V/50HZ/1Ph)
Wheel speed: 2800rpm
Cutting wheel size: Φ350 x2.5 x32mm
MAX cutting diameter: Φ80mm
Max moving travel: 125mm
Max working table travel: 275mm
Motor: 2.5KW
Feed speed: 1‐10mm/min
Working table size: 300mm x250mm
Working table size: 835 x850 x620mm
Machine net weight : 180kg
Tank net weight: 25kg
