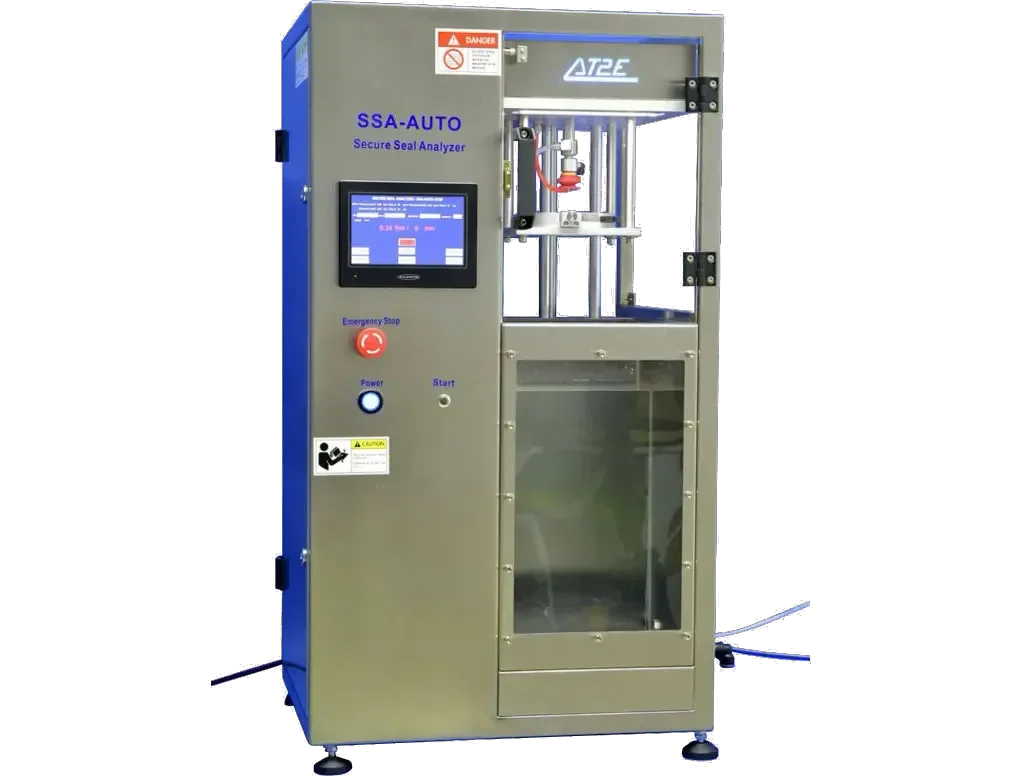

Seal Analyzer is for testing the secure seal performance on products.
It’s an automated machine with automated piercing process and pressurizing process.
Integrating AT2E patent needle, it allows automated installation.
By vacuum technology and special design,
the needle uses a function of self-holding on the tested products.
Stainless steel design makes it resistant to any explosion during the test and ensures the operator’s safety.
SSA-AUTO is equipped with a touching screen.
Visual and easy to operate. Adjustable pressure,
pressurizing rate and holding time stage (up to 4 stages)
setting meets different test requests and standard of various products
Measuring range: 0 to16.00bar
Units:bar & psi
Resolution: 0.01 bar
Testson bottles,cans andpreforms
AT2E patent special needle
Sample range: 350 mm in height & 120 mm in diameter with 26-35 mm neck diameter (others on request)
Touching screen display
Stainless steel secured device: Resistant toexplosions
Up to 4 stages of pressure, pressurizing rate and holding time setting
Testing curve review
30 products memorization
10 operators memorization
Configuration by protected password (administrator)
Dynamic display: statistics/hour/date
Display: product name/operator/batch N°/sample N°
Maximumpressure protection setting
5-8 bar pressure source for vacuum function
0-16 bar pressure source for testing
RS232 output (used to connect to software)
Overall size: 610 (L) x 500 (W) x 1040 (H) mm
Net weight: 60 kg
