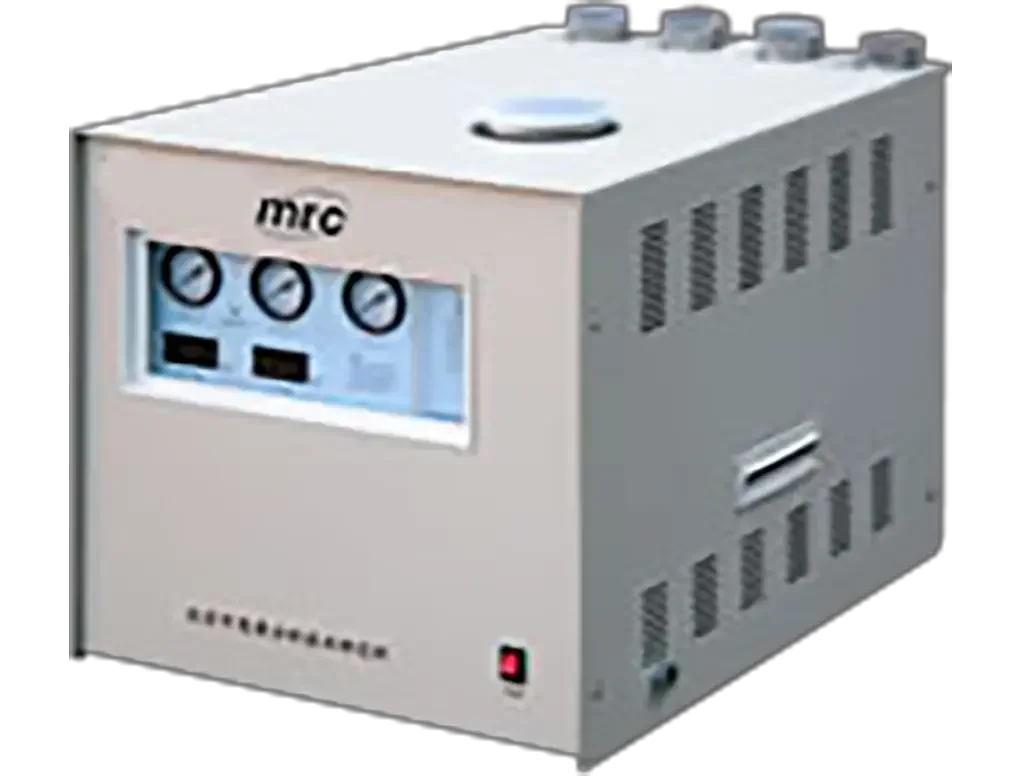

Automatic High-purity Nitrogen Hydrogen Air Generator 0-300ml/min

Automatic High-purity Nitrogen Hydrogen Air Generator 0-300ml/min 3

Automatic High-purity Nitrogen Hydrogen Air Generator 0-300ml/min 3

● Nitrogen purity:Oxygen amount less 3PPM,
dew point: -56OC
● Nitrogen Flow: 0 - 300ml/min
● Nitrogen Pressure: 0.4MPa
● Hydrogen purity: 99.999%
● Hydrogen Flow: 0 - 300ml/min
● Hydrogen Pressure: 0.4MPa
● Air Flow: 0 - 2000ml/min
● Air Pressure: 0.4MPa
● Consumed Power: 330W
● Dimension: 380×260×470mm
● Net Weight: 30Kg

CATALOG NUMBER: GG-N-H-A-300

● Nitrogen purity:Oxygen amount less 3PPM,
dew point: -56OC
● Nitrogen Flow: 0 - 300ml/min
● Nitrogen Pressure: 0.4MPa
● Hydrogen purity: 99.999%
● Hydrogen Flow: 0 - 300ml/min
● Hydrogen Pressure: 0.4MPa
● Air Flow: 0 - 2000ml/min
● Air Pressure: 0.4MPa
● Consumed Power: 330W
● Dimension: 380×260×470mm
● Net Weight: 30Kg

Specifications

TECHNICAL DATA

Specifications

GG-N-H-A-300_SPEC.pdf

FUNCTIONS

DESCRIPTION

● Nitrogen purity:Oxygen amount less 3PPM,
dew point: -56OC
● Nitrogen Flow: 0 - 300ml/min
● Nitrogen Pressure: 0.4MPa
● Hydrogen purity: 99.999%
● Hydrogen Flow: 0 - 300ml/min
● Hydrogen Pressure: 0.4MPa
● Air Flow: 0 - 2000ml/min
● Air Pressure: 0.4MPa
● Consumed Power: 330W
● Dimension: 380×260×470mm
● Net Weight: 30Kg
