Box Chamber Furnace CARBOLITE

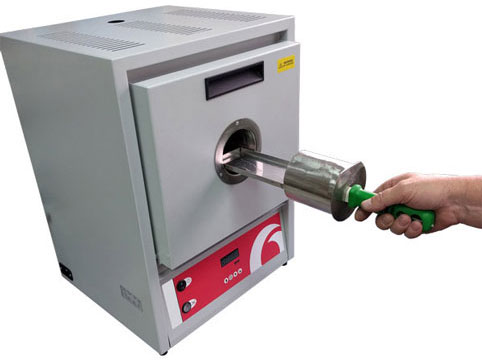

The part tray dimensions is:width 70mm deep 100mm
Max temp (°C)1100
Max continuous operating temp (°C)1000
Volume (litres)6
Heat-up time (mins)28
Dimensions:
Internal H x W x D (mm)165 x 180 x 210
Dimensions:
External H x W x D (mm)580 x 410 x 420
Temperature uniformity of ± 5°C within H x W x D (mm)125 x 140 x 140
Max power (W)2000
Holding power (W)900

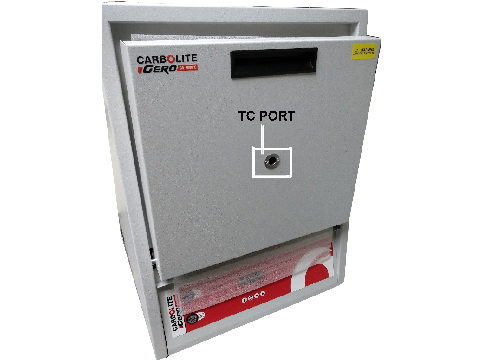

Thermocouple typeK
Weight (kg)24
Digital PID temperature controller
Ceramic chimney for ventilation
