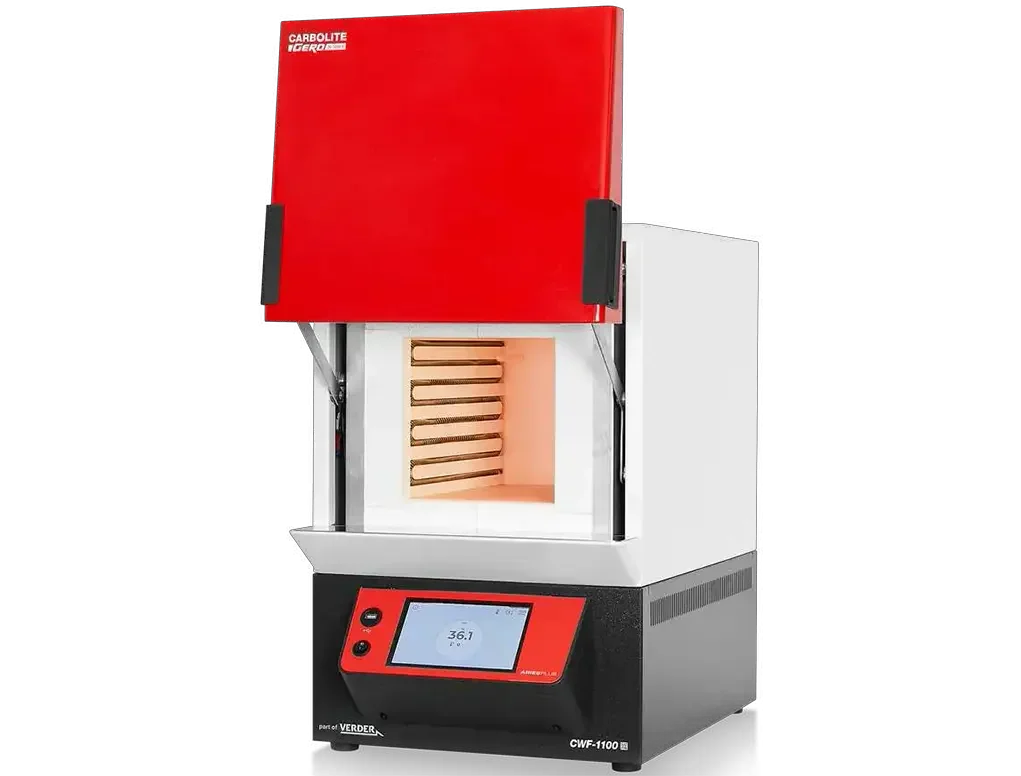

High performance chamber furnace
Maximum temperature 1200 deg c
Max continuous operating temp (°C)1100
Volume 13 liter
Internal :w200mm*h200mm*d325mm
External :w435*d610*8h655mm
Digital PID temperature controller
Ceramic chimney for ventilation
Vertical opening door protect operator
Heat-up time (mins)80
Dimensions:
External with door open H x W x D (mm)905 x 435 x 610
Temperature uniformity of ± 5°C within H x W x D (mm)120 x 120 x 200
Max power (W)3100
Holding power (W)1550
Thermocouple typeR
Weight (kg)47
