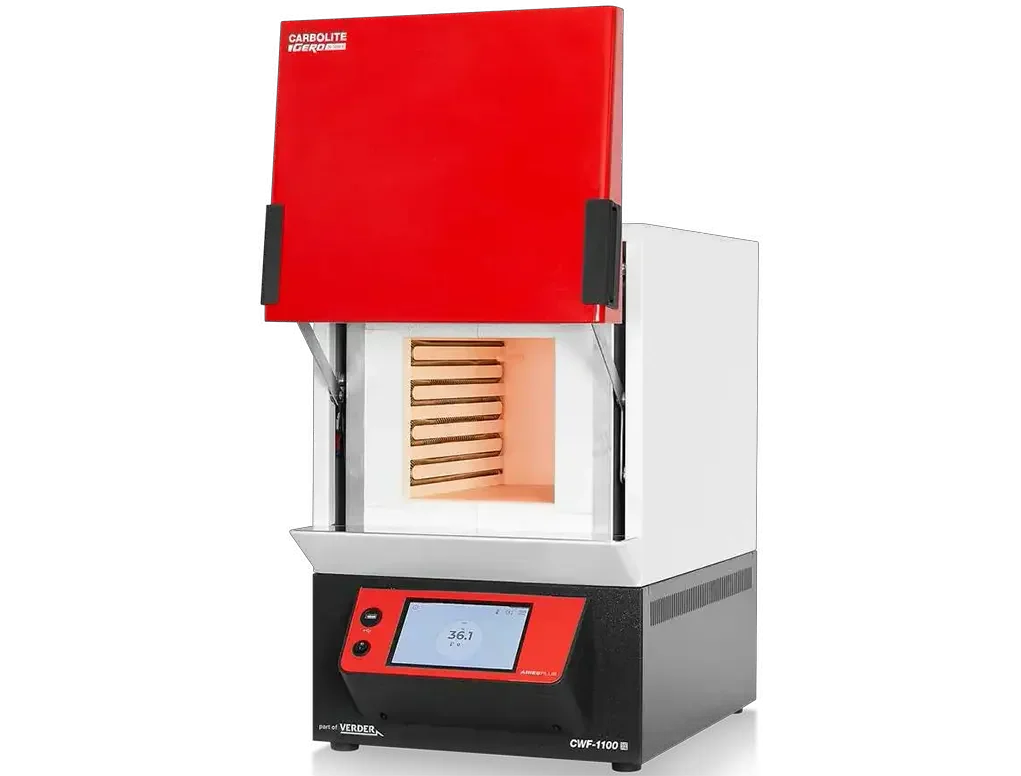

High performance chamber furnace
Max temp (°C)1200
Max continuous operating temp (°C)1100
Volume (litres)23
Heat-up time (mins)45
Dimensions:
Internal H x W x D (mm)235 x 245 x 400
Dimensions:
External H x W x D (mm)705 x 505 x 675
Dimensions:
External with door open H x W x D (mm)990 x 505 x 675
Temperature uniformity of ± 5°C within H x W x D (mm)155 x 165 x 325
Max power (W)7000
Holding power (W)2250
Thermocouple typeR
Weight (kg)68
Maximum temperature 1200 deg c
Digital PID temperature controller
Ceramic chimney for ventilation
Vertical opening door protect operator
