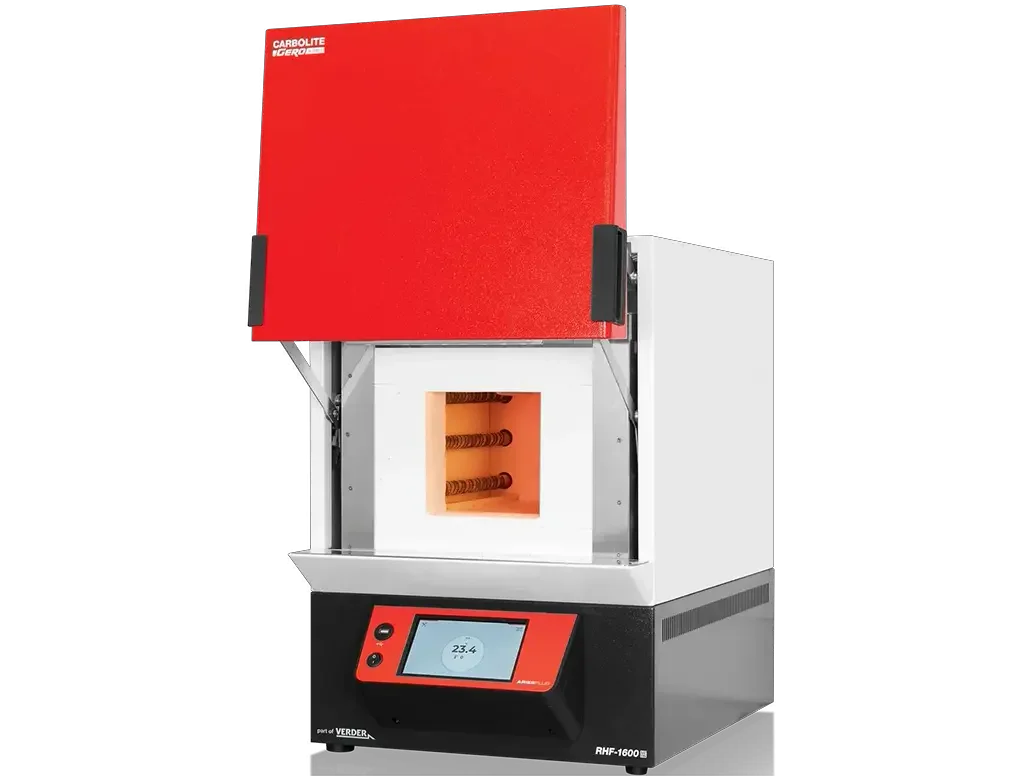

Silicone carbide chamber furnace
Digital PID temperature controller
Ceramic chimney for ventilation
Vertical opening door protect operator
Max temp (°C)1400
Volume (litres)35
Heat-up time (mins)38
Dimensions:
Internal H x W x D (mm)250 x 300 x 465
Dimensions: External H x W x D (mm) H (door open)885 x 780 x 945 (1245)
ConfigurationBench-top
Max power (W)16000
Holding power (W)6000
Thermocouple typeR
Weight (kg)179
Power supply required per phase380-415 3 phase + N 35A, 200-220V 3 phase delta 60A, 440-480V 3 phase no N 35A
