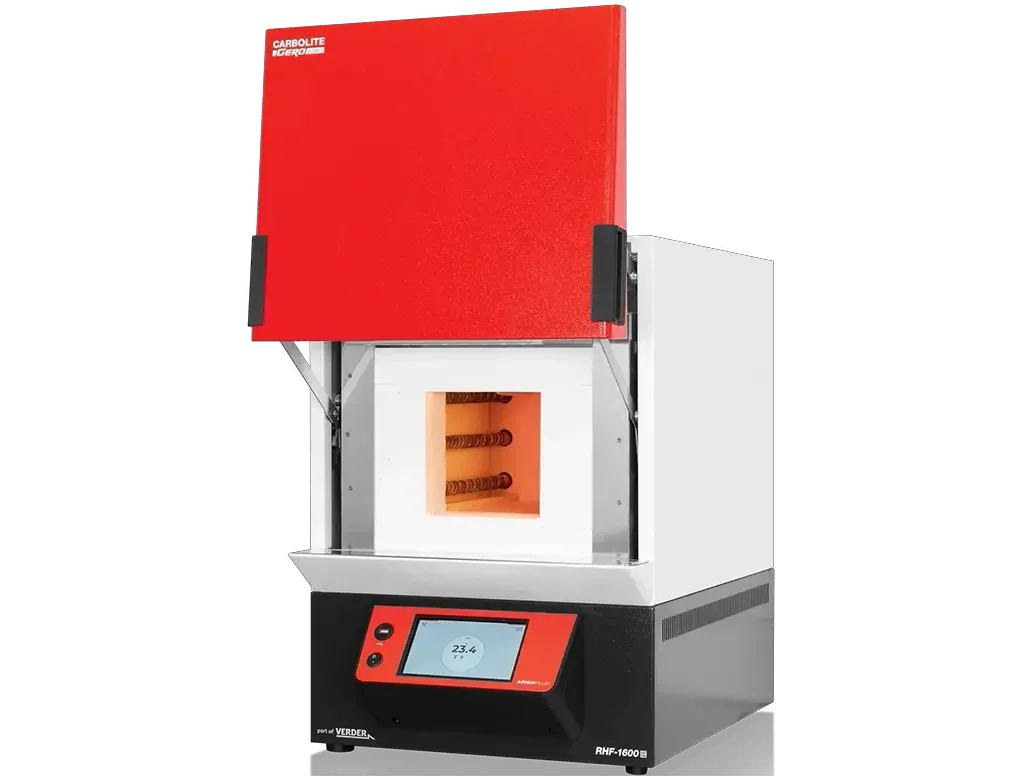

Silicone carbide chamber furnace
Digital PID temperature controller
Ceramic chimney for ventilation
Vertical opening door protect operator
Max temp (°C)1500
Volume (litres)35
Heat-up time (mins)46
Dimensions:
Internal H x W x D (mm)250 x 300 x 465
Dimensions: External H x W x D (mm) H (door open)885 x 780 x 945 (1245)
ConfigurationFloor-standing
Max power (W)16000
Holding power (W)6200
Thermocouple typeR
Weight (kg)178
Power supply required per phase380 - 415 3 phase + N 35A, 440-480V 3 phase no N 60A, 380-415V 3 phase no N 35A, 440-480 3 phase + N 35A
