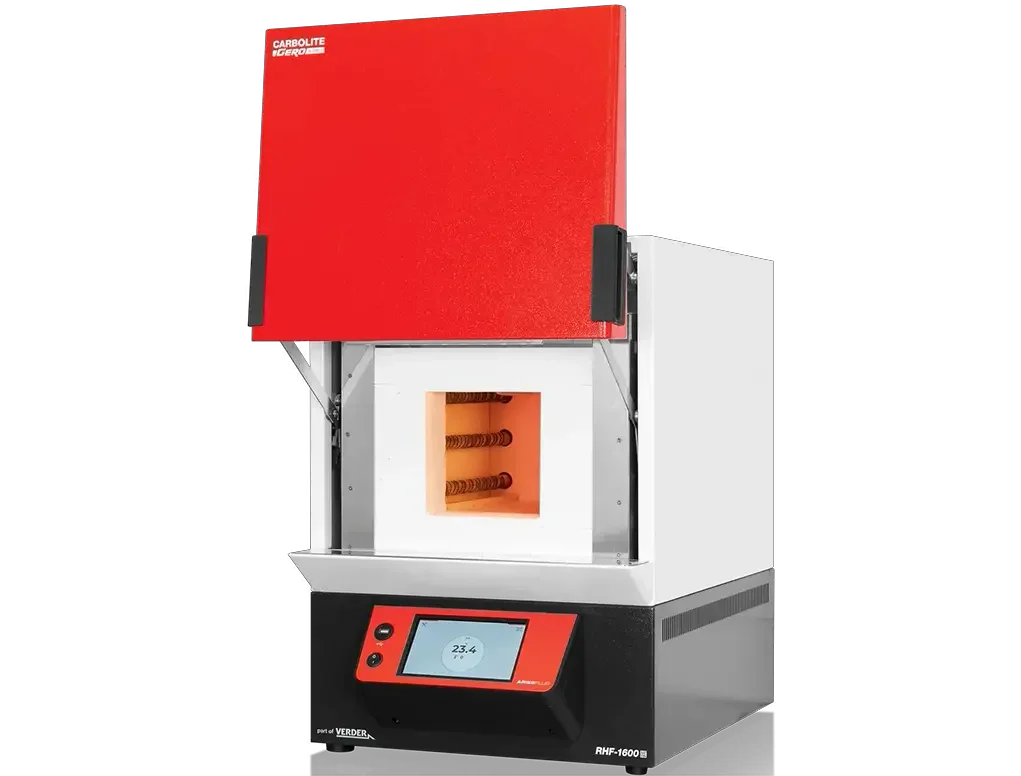

Silicone carbide chamber furnace
Digital PID temperature controller
Ceramic chimney for ventilation
Vertical opening door protect operator
Max temp (°C)1600
Volume (litres)35
Heat-up time (mins)113
Dimensions:
Internal H x W x D (mm)250 x 300 x 465
Dimensions: External H x W x D (mm) H (door open)1530 x 900 x 1020 (1885)
ConfigurationFloor-standing
Max power (W)16000
Holding power (W)7000
Thermocouple typeR
Weight (kg)270
Power supply required per phase380-415V 3 phase + N 40A, 220-240V 3 phase delta 62A, 380-415 3 phase no N 37A, 440-480V 3 phase + N 40A
