Tension Range 50-500N
LCD digital display, convenient for fast and clear read data.
Real-time, peak, the two working modes of arbitrary switch
With OZ, Kgf, N, lbf four units can be set.
You can store five different wire sizes for easy testing in different scenarios.
Widely used in the electric power industry, communication industry, ropeway transportation industry, construction industry, testing institutions and other industries. Can accurately measure the tension and process the data systematically.
Main uses and scope of application

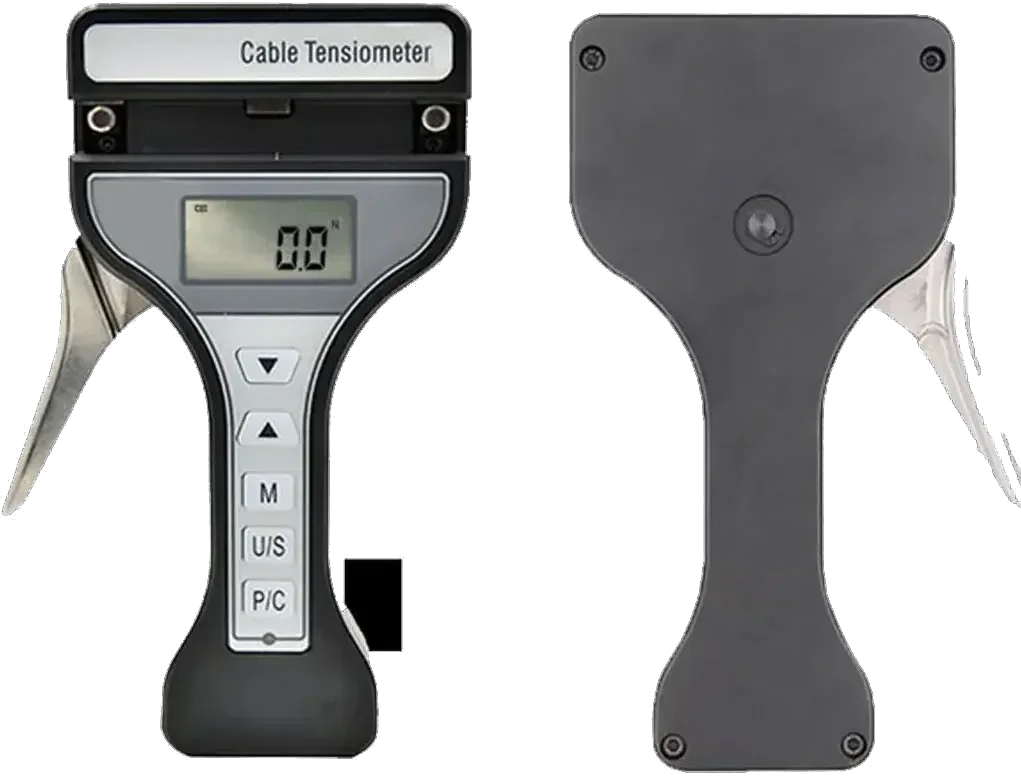

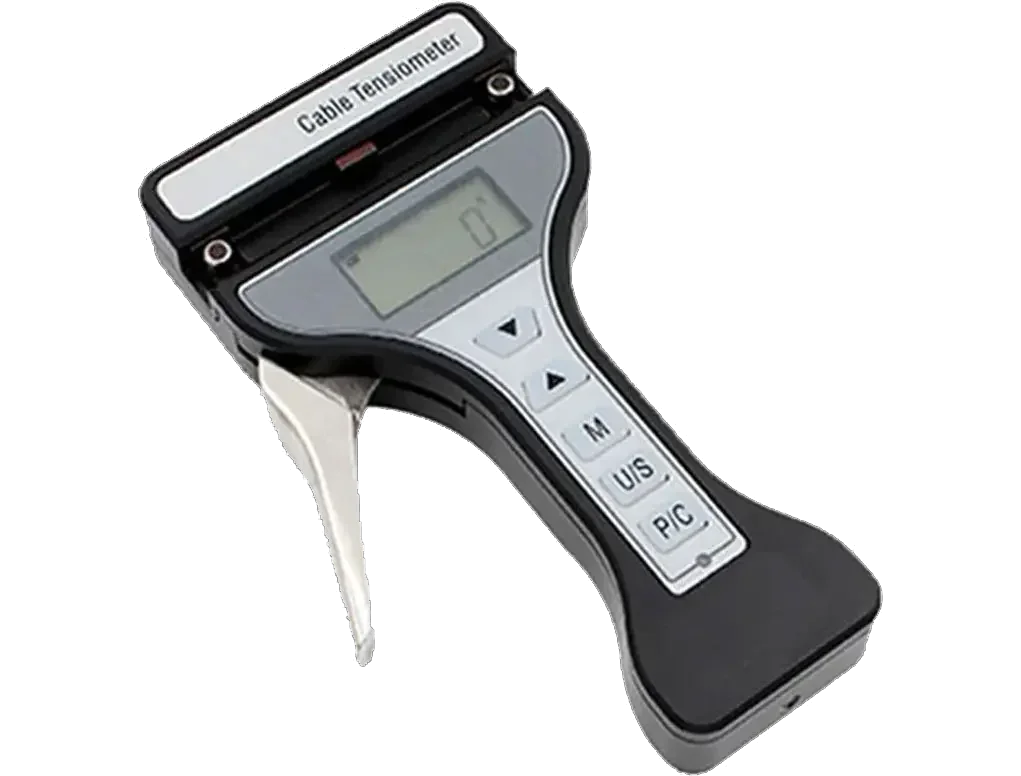

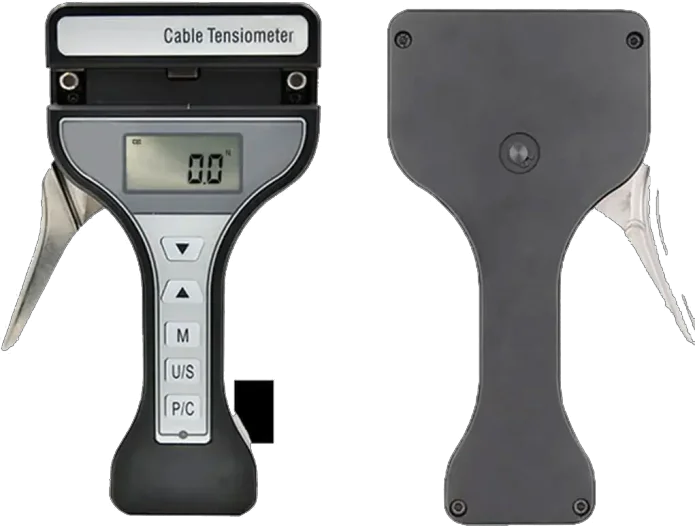

Hand held wire rope tensiometer. It is a hand-held electronic digital graphic measurement instrument. Can measure the tension of the steel cable, widely used in the electric power industry, communication industry, ropeway transportation industry, construction industry, testing institutions and other industries. Can accurately measure the tension and process the data systematically.
Product characteristics
LCD digital display, convenient for fast and clear read data.
Real-time, peak, the two working modes of arbitrary switch.
With OZ, Kgf, N, lbf four units can be set.
You can store five different wire sizes for easy testing in different scenarios.
Product model specification
Tension Range (N):50-500
Steel cable size:1/8(3.5mm)、5/32(4mm)、3/16(4.5mm)、7/32(5.5mm)、1/4(6mm)
size (mm):138×215
Net weight (g):930

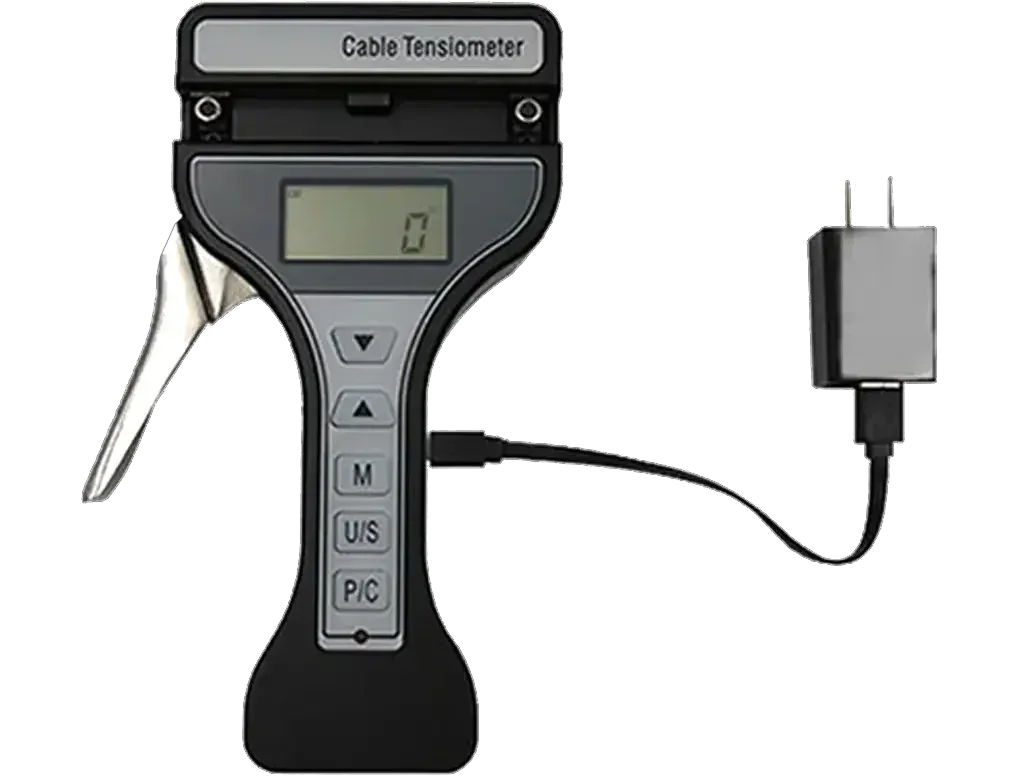

power supply:A 3.7V lithium battery
