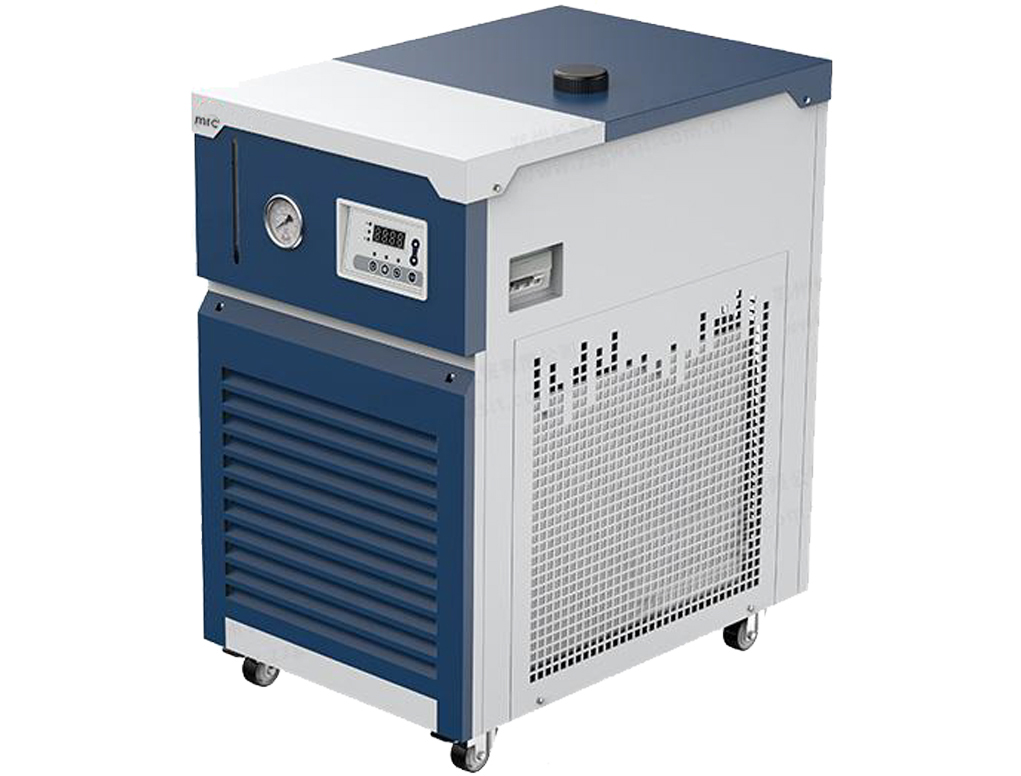

Name: Circulating Chiller
No-load Minimum Temperature (℃): -30
Working Temperature Range (℃): -30~5
Temperature Display Mode: Digital
Temperature Stability (℃): ±2
Sensor Index Number: Pt100
Safety Protection: Time Delay, Overvoltage, Overload and
Overcurrent Protection
Rated Power (W): 1475
Rated Current (A): 7.8
Cooling Capacity at Ambient temperature 25°C (W):
0℃ 1750W@
-10℃ 1100W@
-20℃ 700W@
-25℃ 300W@
Refrigerant: R410A
Liquid Charging Volume (L): 17
Circulation Pump Power (W): 100
Circulation Pump Flow Rate (L/min): 20
Circulation Pump Pressure (bar): 0.4
Power Supply 220-240V~, 50Hz
Ambient Temperature (℃) 5~35
Ambient Relative Humidity (%) ≤70
External Circulation Connection Dimensions: Internal Thread Rc 1/2
Carrier Liquid Filling Opening Size (mm): Ф60
Carrier Tank Material: SUS304
Dimensions (mm): 465W×690D×820H
