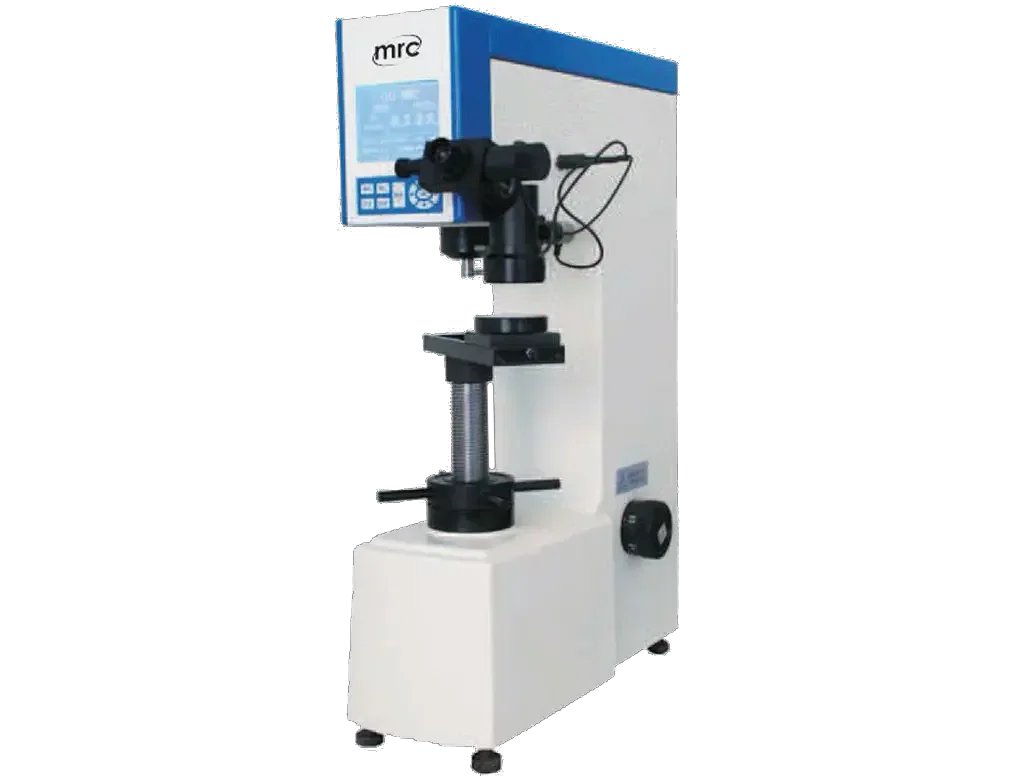

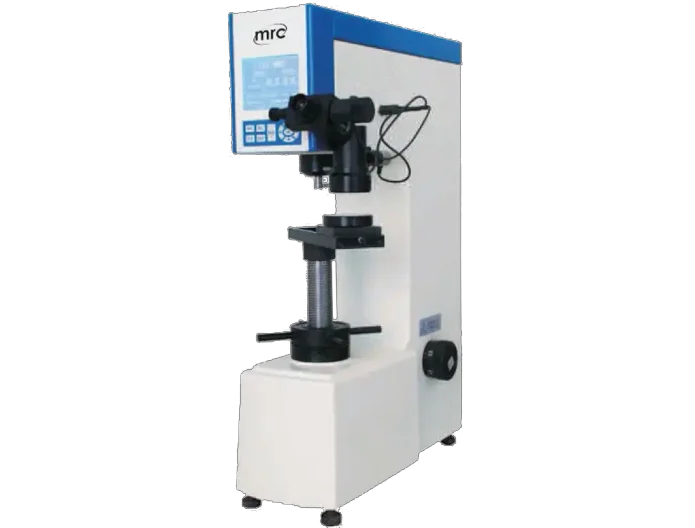

Universal hardness tester with Brinell,Rockwell & Vickers scale
Rockwell scales: HRA. HRB, HRC
Rockwell testing force: 60/100/150 Kgf
Brinell scales: HBW 2.5/31.25, 2.5/62.5, 5/62.5, 2.5/187.5
Brinell testing force: 31.25/ 62.5/ 187.5 Kgf
Digital LCD
Vickers scale: HV30, HV100
Vickers testing force: 30/100 Kgf
Dwell time: adjustable 2-60s
Max. height of specimen: Rockwell 170mm, Brinell 140mm, Vickers 140mm
Instrument throat: 165mm
Power: AC 220V 50Hz; 110V 60Hz
Accuracy: Conform to ASTM E-18; ISO6508; EN-ISO6507
Optional accesories: 1/8" steel ball intender
1/4" steel ball intender
1/2" steel ball intender
