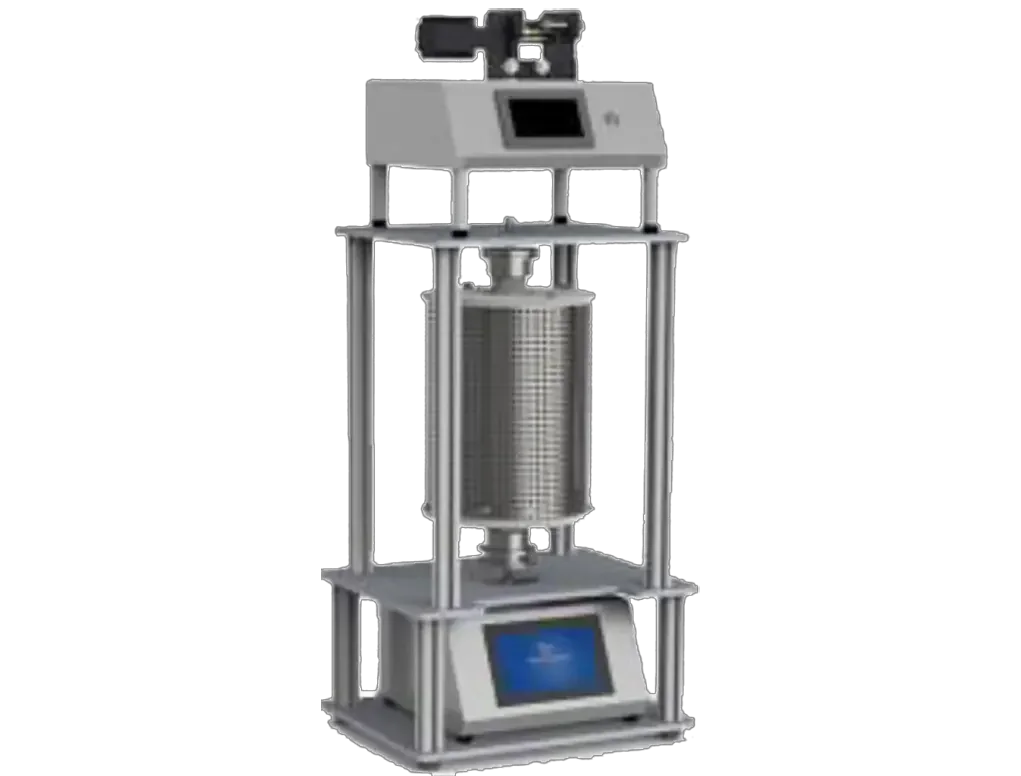

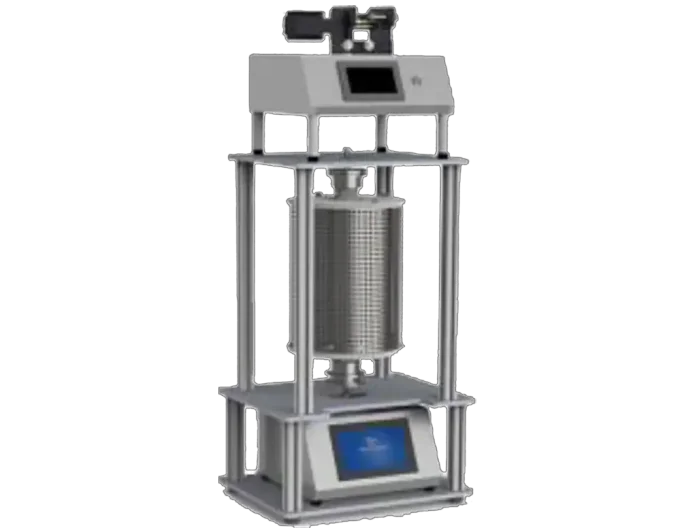

Programmable Dip Coater ( Bridgman ) with Atmosphere Controlled 2" Vertical Tube Furnace Up to 1100°C.
Dip Coater:
6"(L) x 4"(W) Touch Screen Display,
Three stages pulling speed control,
Total stoke length: 620mm,
Pulling Speed: 1-200 mm/min programmable
with accuracy of +/- 0.05%.
Tube Furnaces:
Continuous working temperature: 1100°C.
30 segment programmable digital temperature controller.
Included stainless steel wire Max. working temp.<800°C.
Not included:
.Ni-Cr-Al wire Max. working temp. <1100°C.
Platinium wire Max.working temp. 1200°C~1600°C.
CE Certified.
