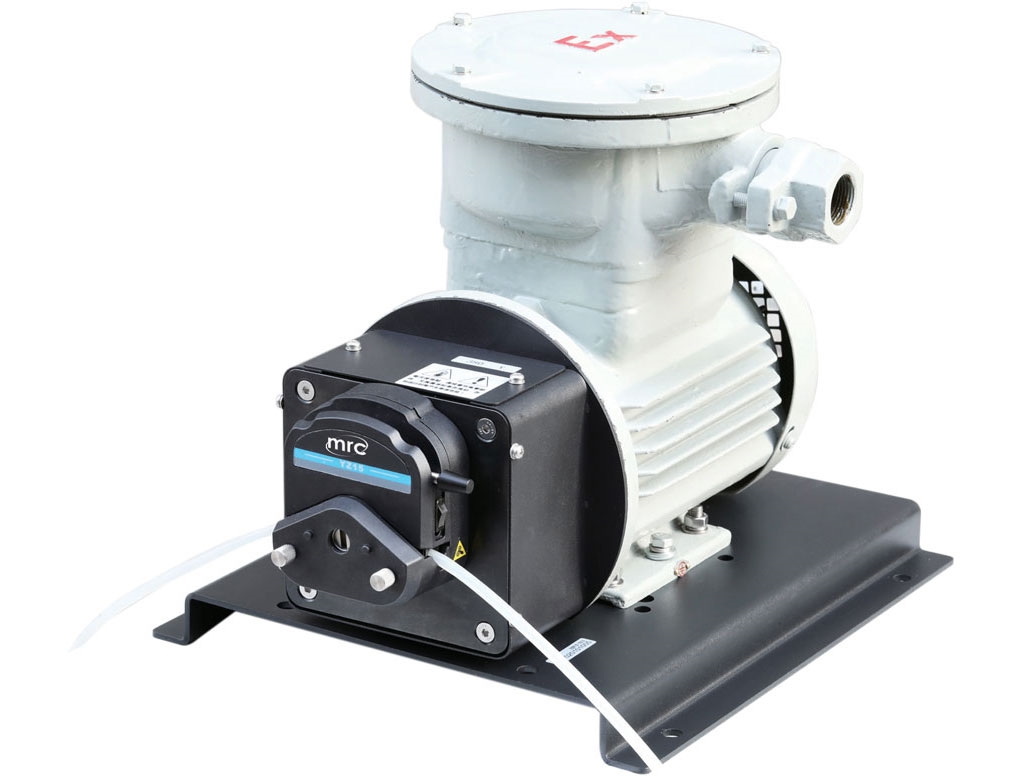

AC Explosion-proof Motor Peristaltic Pump (380V)
•Flow range :4～6000ml/min
•Speed range: 70-600rpm
•Optional Pump head: YZ15, YZ25, YT15, YT25, KZ25, KZ25-L
•Adjust speed: Stepless speed (standard frequency converter motor without connection cable)
• Speed resolution: 0.1HZ（The corresponding rotational speed is 2rpm）
• Control function: Start/stop，Positive and negative, adjust speed, communication etc functions.
•Power supply: Three phase 380 v
•Power consumption: 0.55KW
•Working environment: Temperature 0℃-40℃，relative humidity<80%
•Anti-explosion Grade: ExdIIBT4
•IP Grade: IP55 （only drive）
•Casing Dimensions: （LxWxH）449*350*332
•Weight: 37Kg
