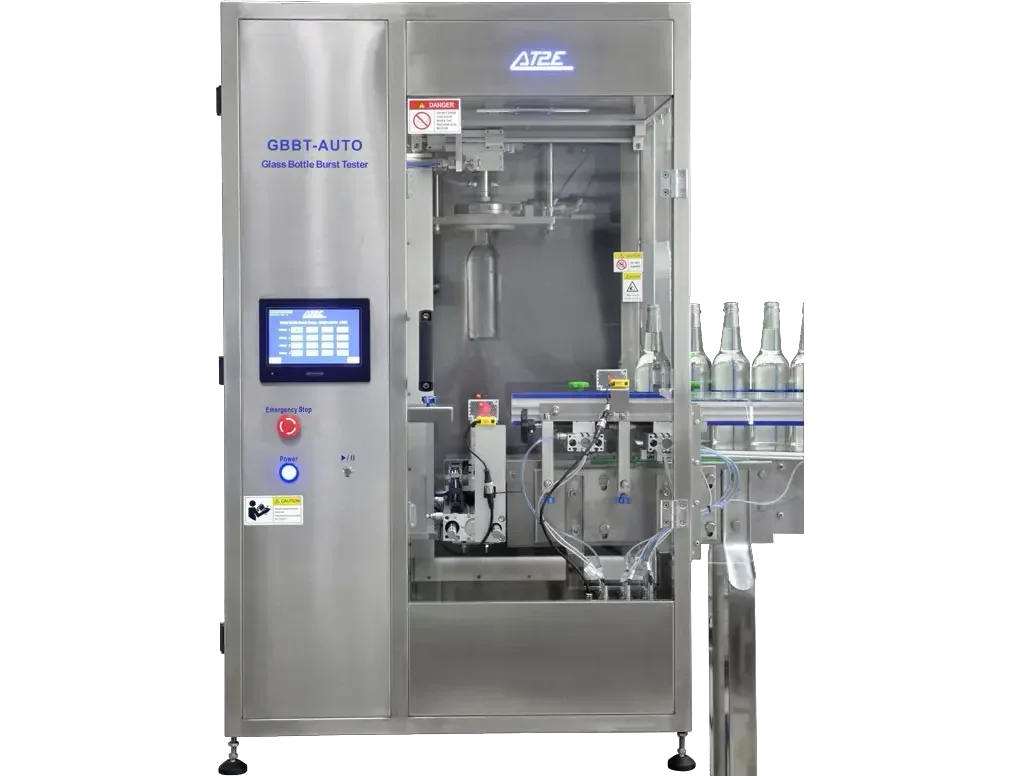

utomated Glass Bottle Burst Tester is a full-automatic instrument
for testing the internal pressure resistance of glass containers.
The GBBT-AUTO adopts full automated controlling system,
no operator is required during the test process,
and the test data will be sent to the data acquisition system automatically,
making the test procedure easier and more efficient.
Designed for easy operation and maintenance,
comply with the testing standard of ISO 7458:2004.
Measuring range: 0-60bar
Resolution: 0.1 bar
Units:bar/psi
Power: 220 V / 50Hz
Power dissipation: 1000 VA
Air supply: 6~8 bar
Water supply: Tap water, ≥1.5 bar
Sample range: Max capacity: 3.5 L
Finish Dimension: Inner dimension: 15 mm,
Outer diameter: 32 mm
Neck dimensions: 25-33 mm
