The TORQUE CHECK has been developed in order to allow operators to control the torque,
calibration team to check in a fast way the accuracy of any
torque testers and maintenance to control and adjust torque directly on capping heads

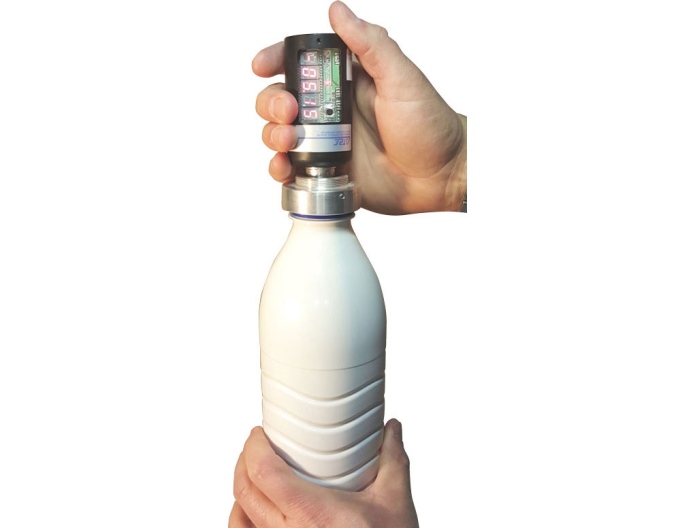

Easy to use, just install TORQUE CHECK on the torque tester,
on the cap or under the capping head and turn slowly
and smoothly in opening or closing direction.
Digital display
Measures in opening and closing directions
Measuring range: 00.00 to 60.00 Kgf.cm
2 Measuring modes (continue, peak)
Units: Kgf.cm / Inch.lbs / N.m / N.cm
Accuracy: ± 0.5 % of full scale
measures memory with curves
Loading / Transfer by USB (PC)
Delivered with ASTM certificate
Transport case
110 / 230 V – 50/60 Hz
Mechanical specifications:
Designed on request regarding customers’ drawings
Built-in battery 3H
Size range: Minimum diameter 35 mm / Minimum height 60mm
Weight: 0,5 kg
