Test Range 20 m ohm ( 1 A DC )
200 m ohm ( 1 A DC )
2 ohm ( 100 mA DC )
20 ohm ( 10 mA DC )

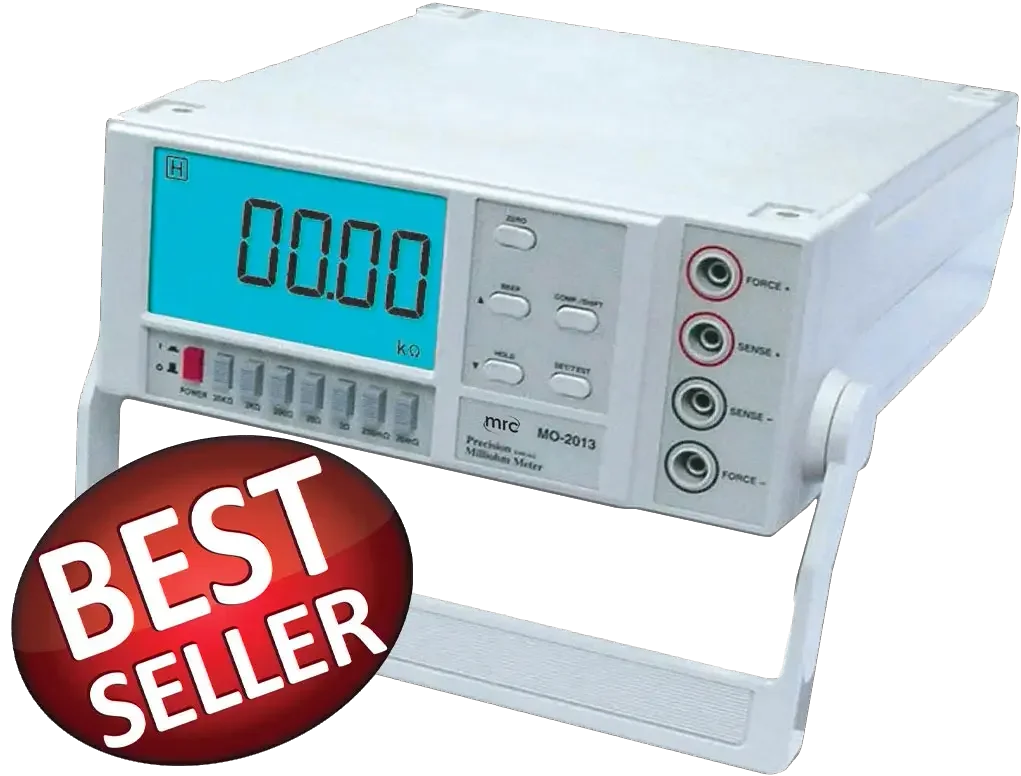

*Professional bench type milliohm meter.
* 20 m /200 m /2 /20 /200 /2 K /20 K ohm.
*20,000 counts, Jumbo LCD with back light.
*Hi I Lo warning , 4 wires terminals ,
Kelvin clips is included, 0.001 milliohm resolution.
*Judgement output : Low/Good/High port, used for the automatic machine to select the components ( good or no good ).
*Power : AC 110V or AC 220 V/AC230 V.
200 ohm ( 1 mA DC )
2 K ohm ( 100 uA DC )
20 K ohm ( 10 uA DC )
RS 232/USB PC serial interface
