Customer can choose 2 templates (25mm, 30mm, 40mm, 50mm) as standard delivery.
Heating temperature range Ambient temp to 200ºC
Automatic cooling temperature range 40‐90 ºC
Pressure dwell time range 0‐999 seconds
Working voltage AC220V/50HZ/1ph
Maximum input Power 1600W
Cooling type water cooling
Dimensions 660x580x580mm
Weight 92kg

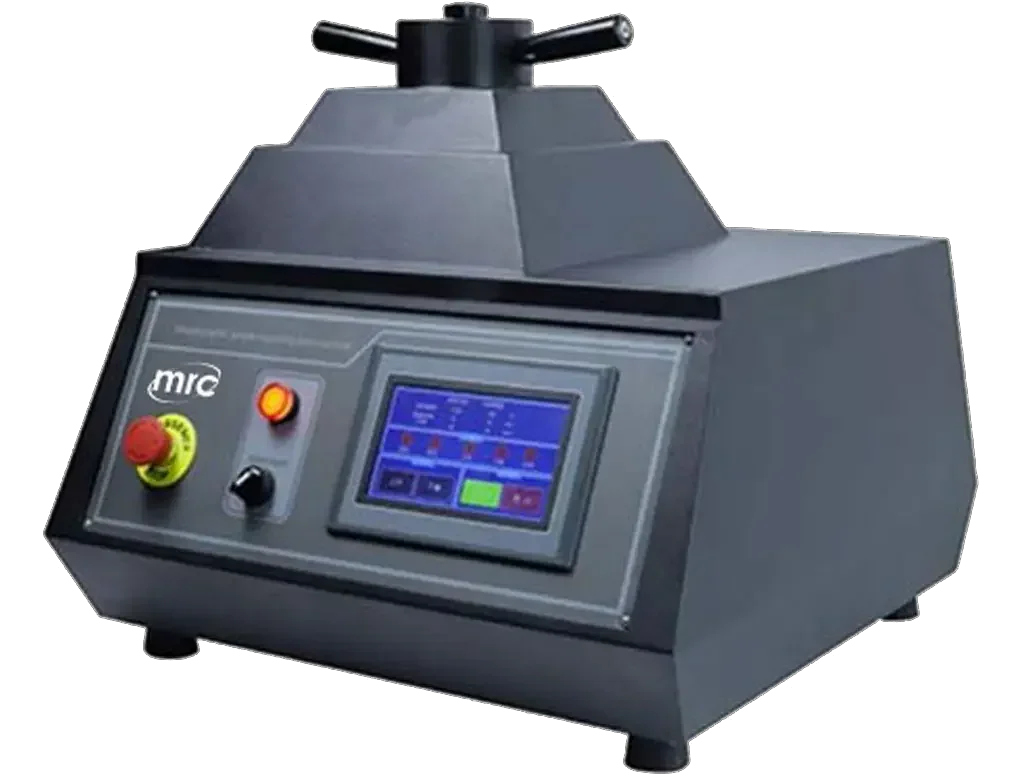

Automatic Metallographic Sample Mounting Press is used
to mosaic small specimens, specimens in irregular shapes,
or specimens which are not easy to take up‐the preceding
process before grinding and polishing metallographic or
rock specimens.
