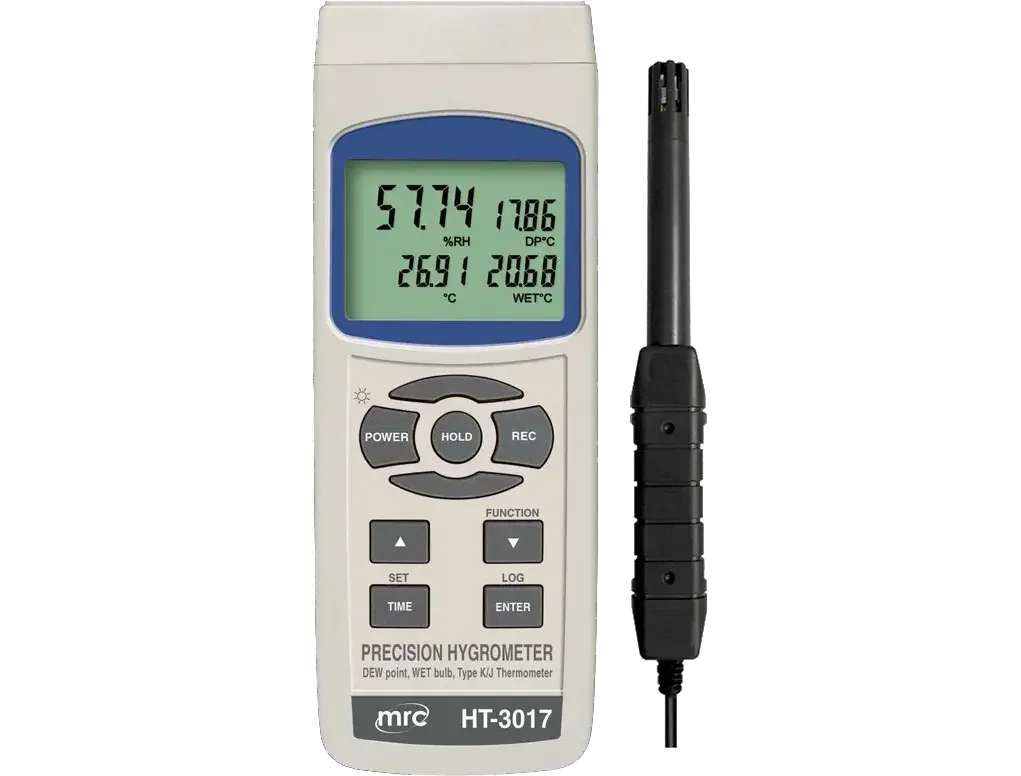

HUMIDITY/TEMP./DEW POINT, type K/J Temp. PRECISION HYGROMETER

HUMIDITY/TEMP./DEW POINT, type K/J Temp. PRECISION HYGROMETER 3

HUMIDITY/TEMP./DEW POINT, type K/J Temp. PRECISION HYGROMETER 3

Precision hygrometer.
Humidity + Temperature + Dew
point are combined into one meter
Type K Thermometer:
-100 to 1300℃
Type J Thermometer:
-100 to 1200℃
* 0.01 %RH humidity resolution.
* 0.01 degree temerature resolution.
Range: 0 to 50 ℃ Temperature.
Resolution: 0.01 ℃
Dew point measurement.
Records Max. and Min. readings
* Data hold.
* RS 232 PC serial interface.

CATALOG NUMBER: HT-3017

Type

HYGROMETER +PC software ( Option )

Parameters

+Type K/J Temp., Dew point, Welt bulb, Humidity, Temperature

Temperature Range (°C)

0 to 50°C + Type K/J Temp.

Relative Humidity Range (%)

5 to 95%

Data Logging ?

No

Communication Port ?

Yes

Precision hygrometer.
Humidity + Temperature + Dew
point are combined into one meter
Type K Thermometer:
-100 to 1300℃
Type J Thermometer:
-100 to 1200℃
* 0.01 %RH humidity resolution.
* 0.01 degree temerature resolution.
Range: 0 to 50 ℃ Temperature.
Resolution: 0.01 ℃
Dew point measurement.
Records Max. and Min. readings
* Data hold.
* RS 232 PC serial interface.

Specifications

Operation Manual

TECHNICAL DATA

Type

HYGROMETER +PC software ( Option )

Parameters

+Type K/J Temp., Dew point, Welt bulb, Humidity, Temperature

Temperature Range (°C)

0 to 50°C + Type K/J Temp.

Relative Humidity Range (%)

5 to 95%

Data Logging ?

No

Communication Port ?

Yes

Specifications

HT-3017_SPEC.pdf

Operation Manual

HT-3017_OPR.pdf

FUNCTIONS

DESCRIPTION

Precision hygrometer.
Humidity + Temperature + Dew
point are combined into one meter
Type K Thermometer:
-100 to 1300℃
Type J Thermometer:
-100 to 1200℃
* 0.01 %RH humidity resolution.
* 0.01 degree temerature resolution.
Range: 0 to 50 ℃ Temperature.
Resolution: 0.01 ℃
Dew point measurement.
Records Max. and Min. readings
* Data hold.
* RS 232 PC serial interface.

ACCESSORIES

VIDEOS

DOCUMENTATION

Specifications

Operation Manual

DOWNLOAD

REQUEST A QUOTE

DC 9V Adaptor

EXTENSION CABLE 5 meters for probe

Extension cable 5 meters for probe

Water resistant bag for measurment device 285X167 mm

Water resistant bag for measurment device 185X167 mm

DATA ACQUISITION SOFTWARE

Data Acquisition Software : SW-E816

Excel Data Acquisition Software - for Win.10

Excel Data Acquisition Software - for Win.10

USB communication Cable

RS-232 CABLE
