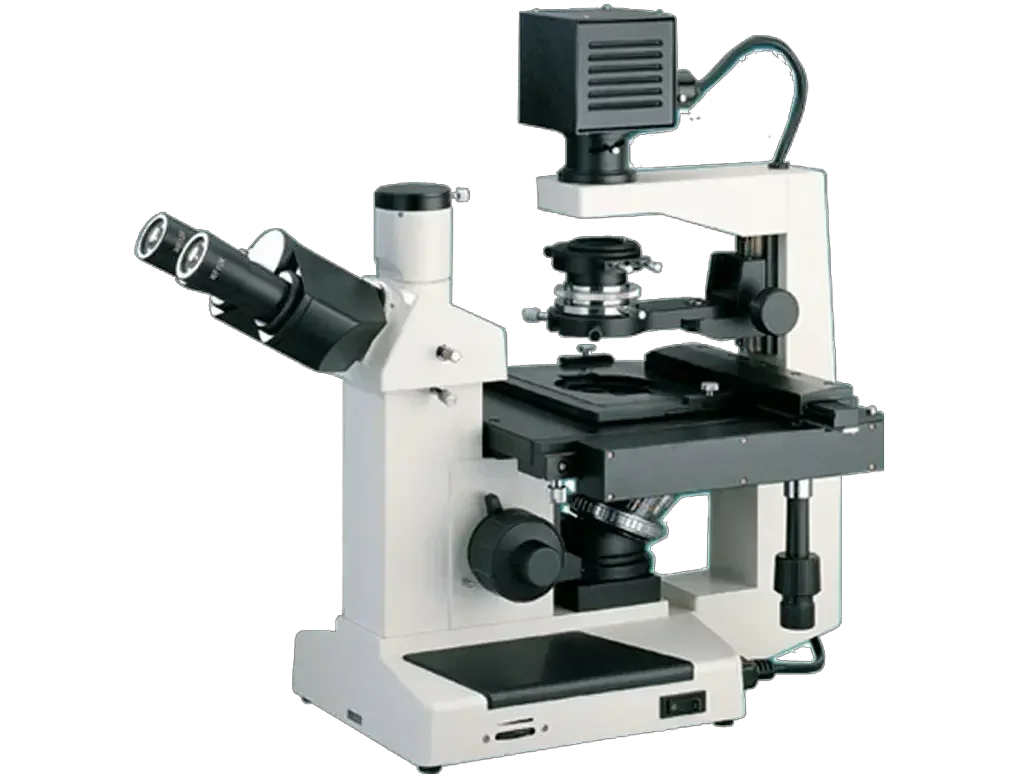

Inverted microscope Magnification 100X - 400X
Trinocular Can be select photo attacthment
Wide field eyepieces: 10X ( Ø20mm Objectives
Long working distance plan achromatic objectives
( cover glass thick: 1.2mm ): PLL10X/0.25, PLL25X/0.4,
PL40X/0.6 .
Long working distance plan achromatic phase contrast
objectives:
PLL10X/0.25 ( include 10X annular diaphragm plate )
Condenser Long working distance condenser: NA=0.4 , working
distance 30mm.
Stage Size: 200mm X 140mm ; Movement range: 30mm X75mm.
Focusing Mechanism Coaxial coarse and fine focusing mechanism with tension
adjustable and focus stop, minimum increment is 0.002mm.
Illumination 6V20W halogen lamp, adjustable brightness
