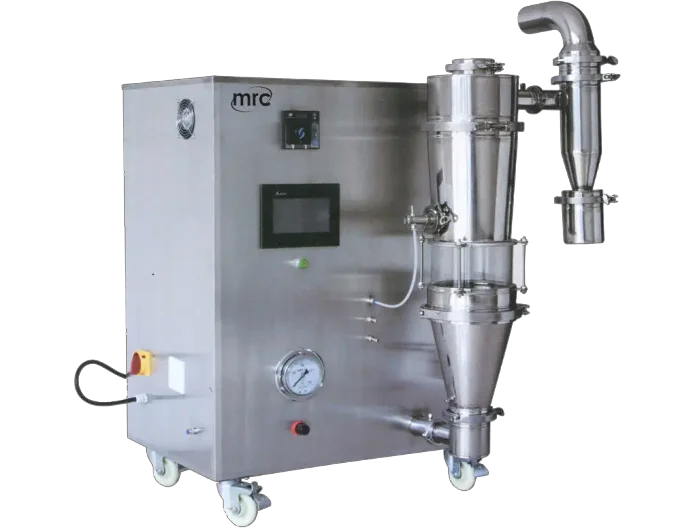

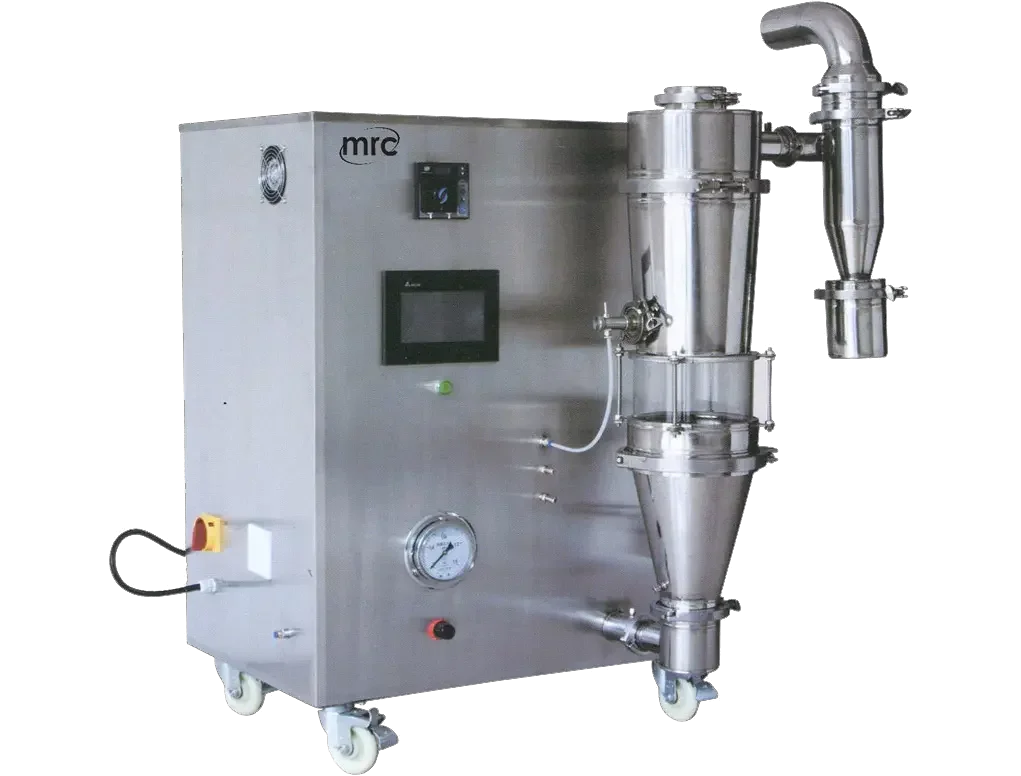

Lab Spray Granulator
Function: Spray dryer, spray granulator, coating, mixing
Power: 5KW, 220V, 50/60Hz
Capacity for spray granulator: Max. 1000g/batch
Capacity for spray dryer: Max. 1500ml/h
Minimum sample volume: 50g
Granulator temperature: 40-150°C
Spray dryer inlet temp: 105-200°C
Compressed air: 2-4 Bar
Temperature precision: ±1°C
Coating: 50-1000g/batch
Mixing: 50-1000g/batch
Nozzle type: Two fluid nozzle
Nozzle jet: 0.7mm standard (0.5/0. 75/1.0/1.5/2.0mm available)
Airflow: 0-150 m3/h
Peristaltic pump: Max. 1500ml/h
Main chamber volume: 10L
Heaterpower: 4.5KW
Dimensions: 900x800x1300mm
Weight: 110KG
Operation mode: Automatic/Manual
Display: 7-lnch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency
