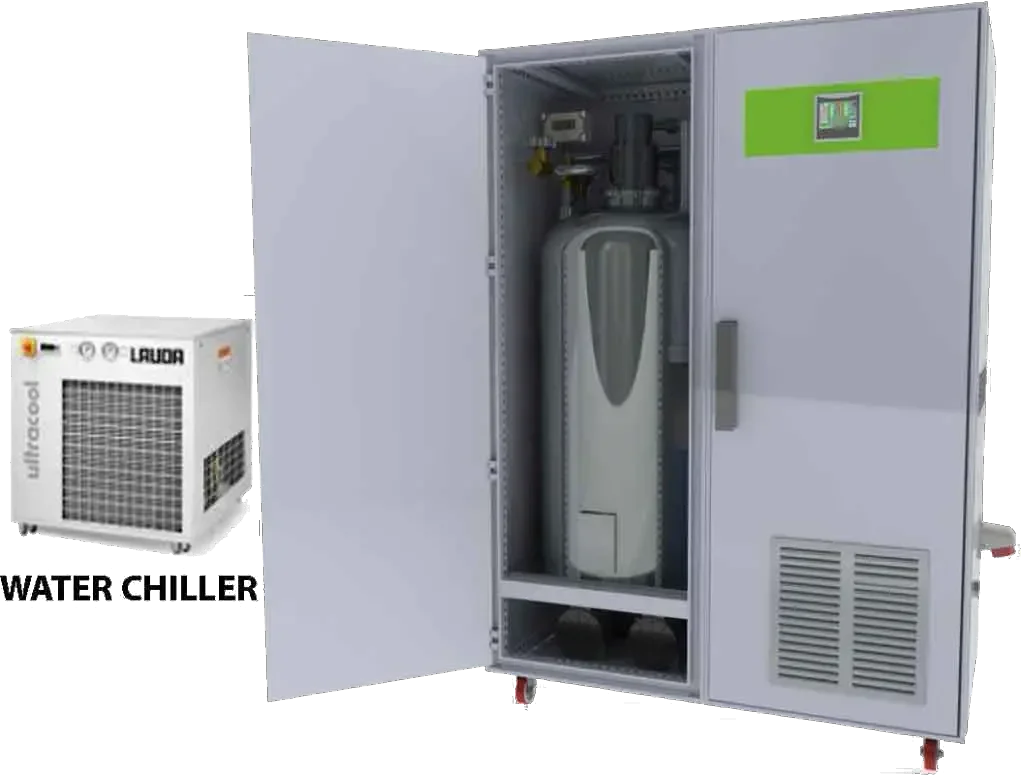

LN2 generator 40l/day without cooling system
Must be connected to an external water chiller.
Water cooled to ambient temperatures up to +52°c.
Internal air compressor.
Nitrogen produced using our own PSA nitrogen generator.
Pressure Boost system increasing production
No Loss Pressure system
All cryogenic parts are vacuum insulated.
Colour touch screen control.
Small footprint. Low noiseLiquid nitrogen productio: 1.66 L/hr = 40 L/day
Liquid nitrogen purity : >99% (<1.0% O2)
Liquid nitrogen tank volume : 100litres
Liquid nitrogen Pressure (bar g) : Up to 4.0
Power consumption (Kw) – excluding water chiller: 4.0
Power supply (3 phases + neutral and earth) : 380-415 50/60Hz
Cooling water requirement (kw cooling power): 5.0
