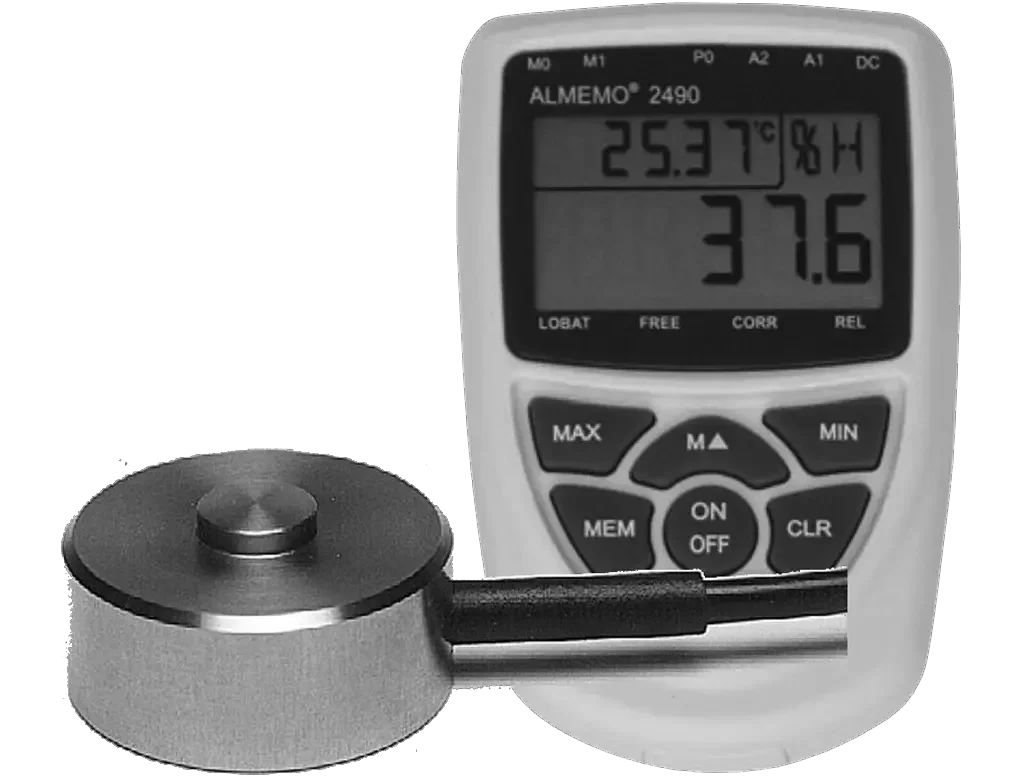

Miniature force cell measuring range 100-2000 newtons to choose from. The diameter of the upper bead is 3.5 mm, total diameter is 16 mm. Please specify measurement range: 100N, 200N, 500N, 1000N, 2000N.
Max. load limit: 150% of final value
Maximum dynamic load: 70% of final value
Reference temperature: 23°C
Cable: radial, 3m long with ALMEMO connector®
Accuracy: <±0.5% of final value
Nominal measuring path: <0.2mm
Operative range: –10 to +50°C
Drift error at permanent load: 0.1% per 30min
Protection system: IP 65
Material: stainless steel
F Wire strain gauges in four-conductor full-bridge circuit.
F Control resistance for final adjustment of the measuring
range.
F All measuring ranges that are specified in Newton can also be supplied in kg ranges.
