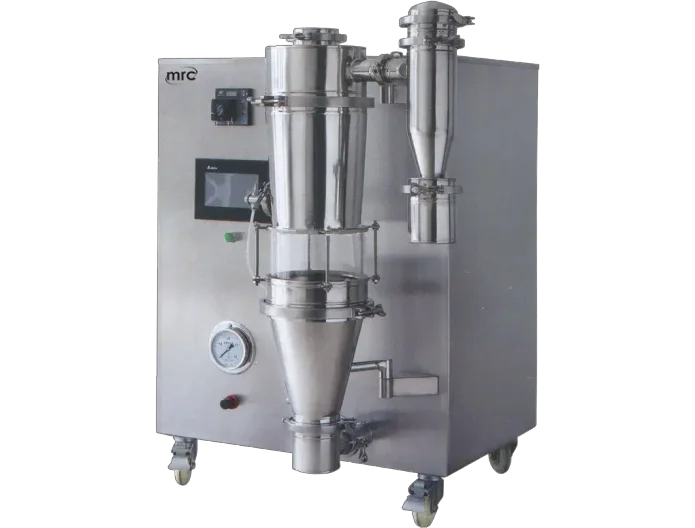

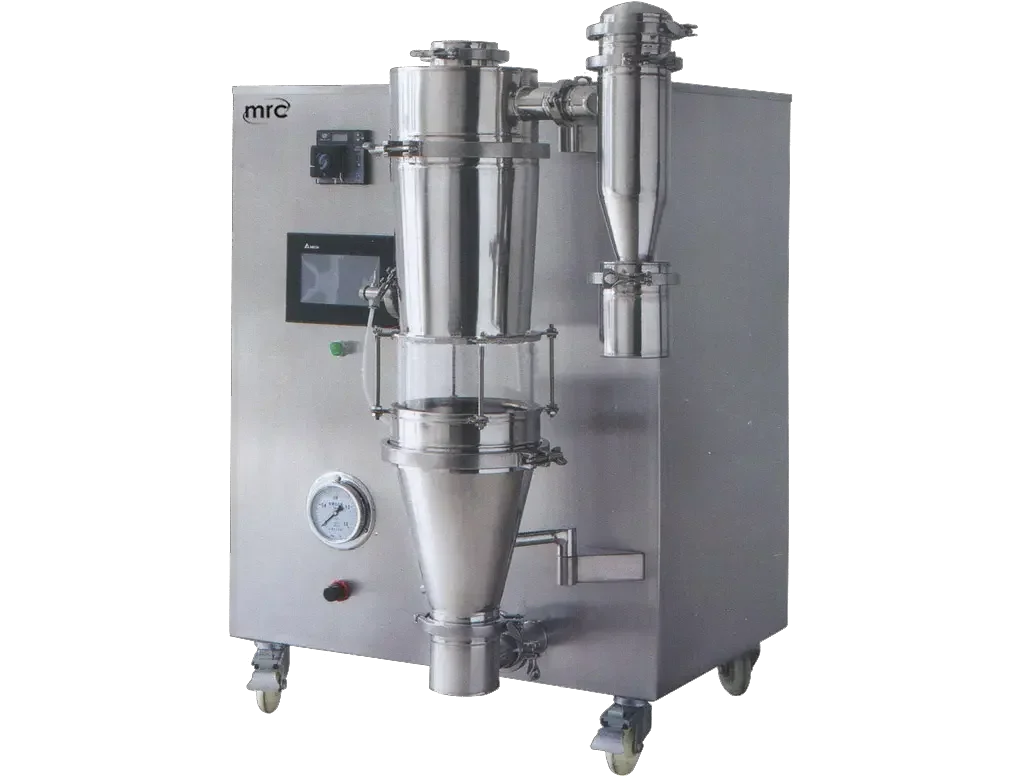

Low Temperature Spray Dryer
Power: 4000W
Minimum sample volume: Max. 1500ml/h for water
Granulator temperature: 0-330m3/h
Max. inlet temp.: 200°C
Heating power: 3500W
Temperature precision: ±1°C
Compressed air: 4.2 m3/h, 2-5bar
Nozzle jet: 0.7mm standard (0.5/0.75/1.0/1.5/2.0mm available)
Nozzle type: Two fluid nozzle
Possible particle size range: 1-25µm
Mean Residence time: 1.0-1.5 sec.
Operation mode: Automatic/Manua
Max. Sample feed: 2000ml/hr
Minimum sample volume: 30ml
Inlet temperature: 105 ~ 200°C
Dimensions: 950x800x1350mm
Weight: 135kg
Display: 7-lnch LCD display for Heat, Spray, Pump, Air pressure, de-blocker frequency
Thermal protection: Blower does not stop until temp <90°C
Deblocking: Automatic
