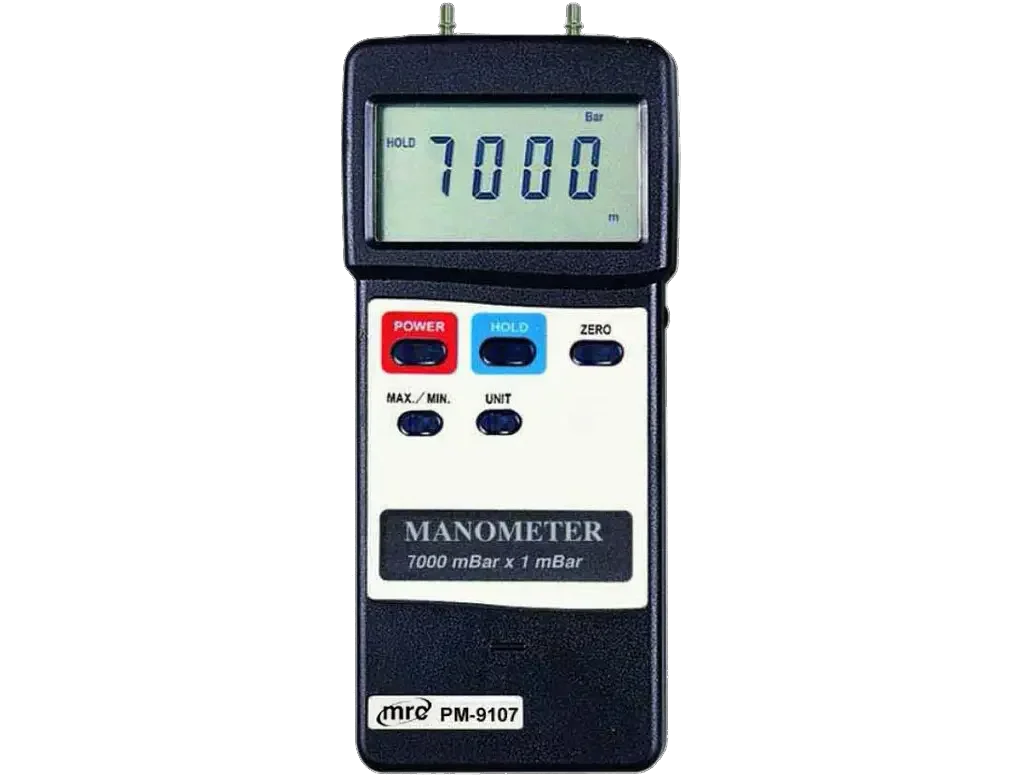

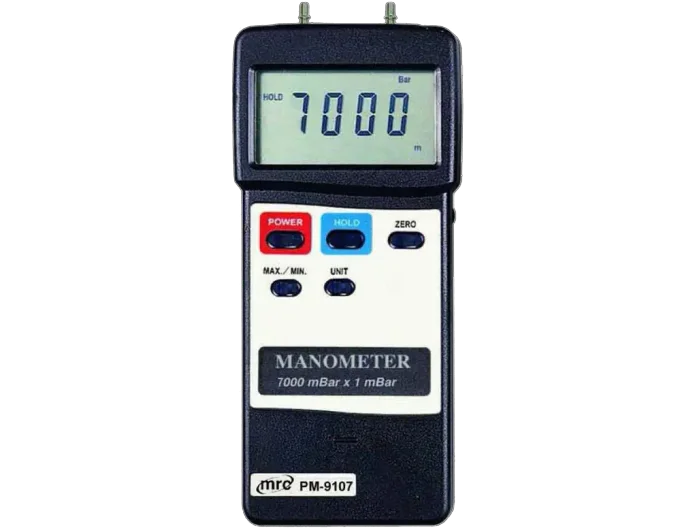

Manometer with Dual & differential input, 7000 mbar maximum range
Sensor is built inside the housing
Single lugs for pipe connection
8 kind display units select by push button on the front panel
Records max. & min. readings
Zero button on the front
m bar 7000 m bar 5 m bar
psi 101.5 psi 0.5 psi
Kg/cm^2 7.135 Kg/cm^2 0.005 Kg/cm^2 ± 2 % F. S. ( F.S. : full scale )
mm/Hg 5250 mm/Hg 5 mm/Hg
inch/Hg 206.7 inch/Hg 0.1 inch/Hg Note :
meter/H2O 71.35 meter/H2O 0.05 meter/H2O Included linearity, hysteresis and
inch/H2O 2810 inch/H2O 2 inch/H2O repeatability
Atmosphere 6.905 Atmosphere 0.005 Atmosphere
