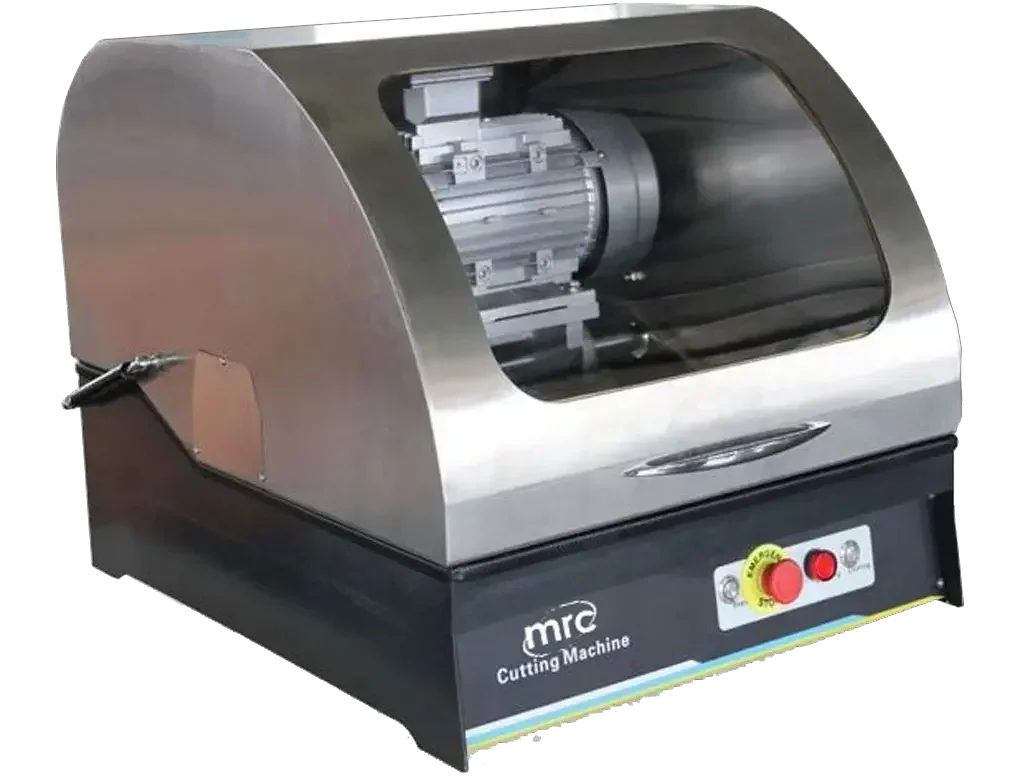

Manual Metallographic Sample Cutter with Cooling Tank
Input voltage AC380V/50HZ/3Ph
Wheel speed 2800rpm
Cutting wheel size Φ250mm x2mm x32mm
MAX cutting diameter Φ80mm
Motor Y2‐1001‐2‐2, 3KW
Dimension 690mm x790mm x800mm
SQ‐80 is suitable for cutting all kinds of specimens including metallic materials and nonmetallic materials so as to
observe metallographic structure and lithofacies structure.
It equips with double drive vises, T slot wide workable cutting diameter 80mm, and illuminating system.
The cooling circuit could help to prevent burning the sample metallographic structure due to overheating during
the cutting process, the cooling liquid filtering system with 40‐60 liters.
SQ‐80 is quiet convenient, safe and reliable. It is one of the necessary specimen‐making equipment for
metallographic test for factory ,researching unit and college and university laboratory.
