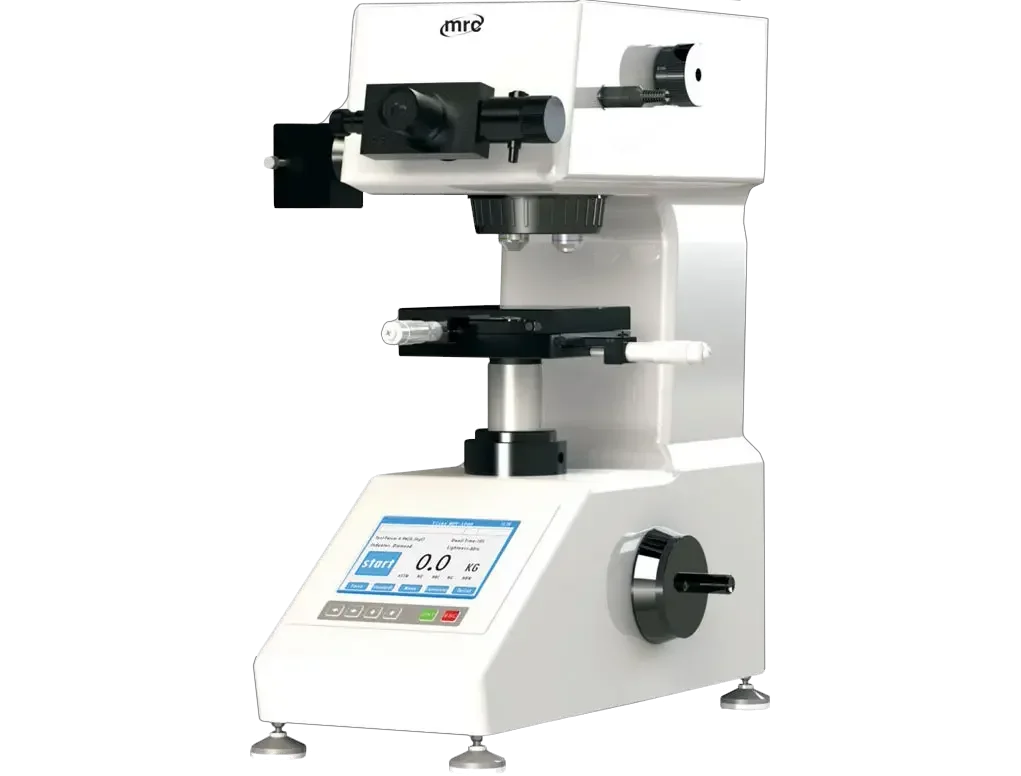

Practical micro Vickers hardness tester
Testing force: 10,25,50,100,200,500,1000 gf
0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80 N
Digital sensor measurment
RS232 output
Magnification of microscope: observation:X10, measurment:X40
Magnification of eyepiece: X10 digital eyepiece
Dwell time: 5-60s adjustable
Testing range: 1-2967 HV
Auto hardness conversion: HRA, HRB, HRC, HV, HK, HBW,
X-Y anvil
Hallogen light illumination
Max. height of specimen: 70mm
Instrument throat:95 mm
Execution standard: GB/T4340, EN-ISO 6507, ASTME10-18, ASTME-384
