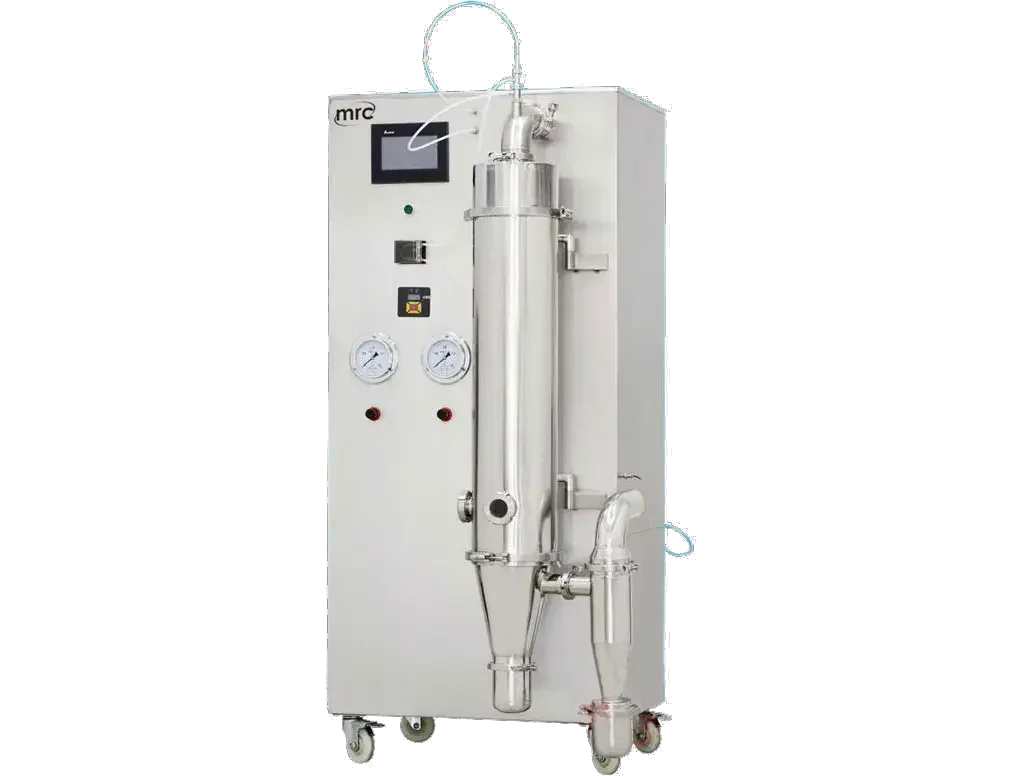

Mini Spray Dryer
Power 5500W
Voltage 220V, 50/60 Hz
Atomizer material SUS 316 Stainless Steel
Evaporating capacity 4L/H for water
Airflow 0-330 m3/h
Max. Input temperature 350°C
Heater power 5000W
Temperature precision ±1°C
Spray gas 4.2m3/h, 2-5bar
Nozzle jet 0.7mm standard/(0.5/0.75/1.0/1.5/2.0mm available)
Nozzle type Two fluid nozzle
Possible particle size range 5-100µm
Operation mode Automatic/Manual
Max. Sample feed 4000ml/hr
Minimum sample volume 100ml
Seal of cyclone/cylinder Silicone
Deblocking Automatic
Dimensions 950X750X1700mm
Weight 160kg
