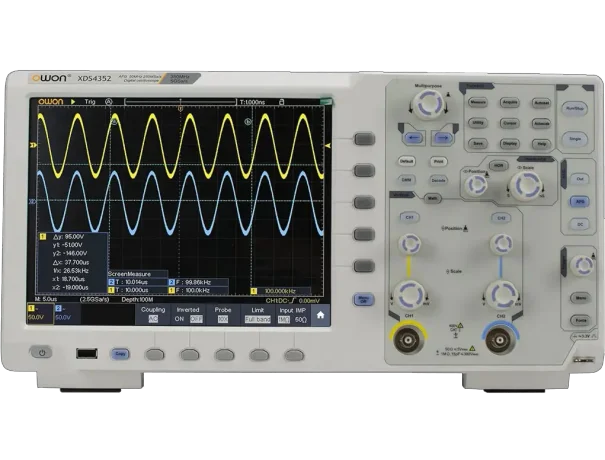

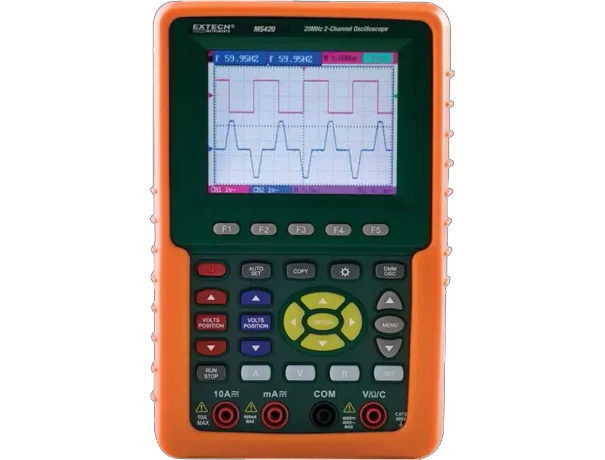

Oscilloscopes test voltage signals as waveforms, visual representations of the variation of voltage over time.There are two types of oscilloscope; analog and digital.
Application of Oscilloscope
-Electronics and Electrical Engineering: Used for circuit analysis, debugging, and design verification.
-Medicine: Used in electrocardiography (ECG) and medical imaging systems.
-Automotive Industry: Used for diagnosing automotive electronic systems and analyzing sensor signals.
-Telecommunications: Used for testing and troubleshooting communication networks and equipment.
-Detection of faults in electronic equipment
-Medical follow-up of the heart.
-automotive test
-signal analysis
-Serial data analysis
-Jitter analysis
How Does an Oscilloscope Work?
The operation of an oscilloscope involves two main processes: signal acquisition and waveform display.
Signal Acquisition
The oscilloscope captures voltage signals from the input channels and converts them into digital data using analog-to-digital converters (ADCs).
Displaying the Waveform
The digital data is processed and displayed on the screen as a waveform graph, allowing users to visualize the signal characteristics.
