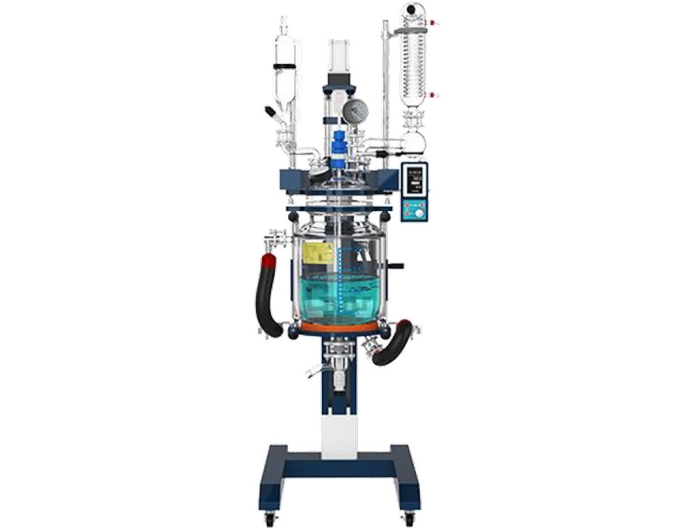

20L Lifting Double Jacketed
(3-layer) Glass Reactor
● High borosilicate glass 3.3 has good physical and chemical properties.
● Wide working temperature range: -80~200℃.
● Working pressure: -0.1 MPa to 0.0 MPa.
● The glass vessel can be lifted up, and can be angled 120°both sides, which makes it more
convenient to operate and clean.
● Stainless steel hose connected to the jacket inlet/outlet.
● PTFE discharge valve.
● Lockable casters design for easy moving.
● DC brushless motor, stepless speed regulation, LED digital display of torque, temperature,
time and rotation speed.
● RS485 communication interface on the control box can transfer the data to PC.
● Patented stirring shaft has high sealing efficient and long lift-span.
● PT100 temperature sensor has high control accuracy, SUS304 coated with PTFE tube, double
anti-corrosion.
● PTFE stirring paddle, SUS304 coated with PTFE.
● Stirring motor 370W
● Stirring speed 20-500rpm
● Dimensions 850W*1100D*2050H mm
