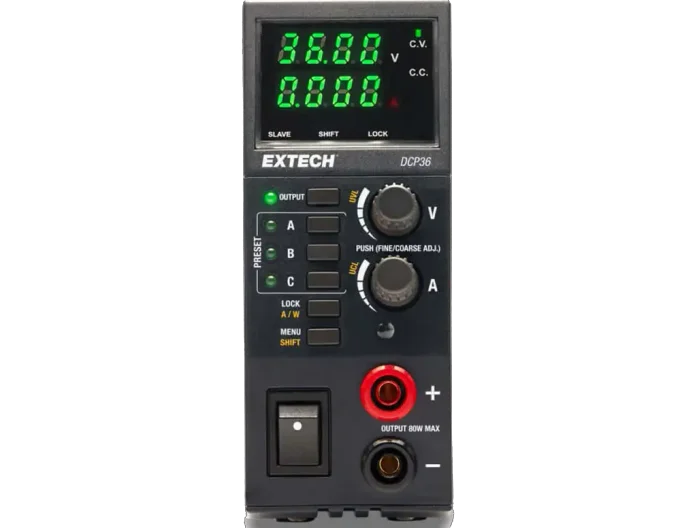

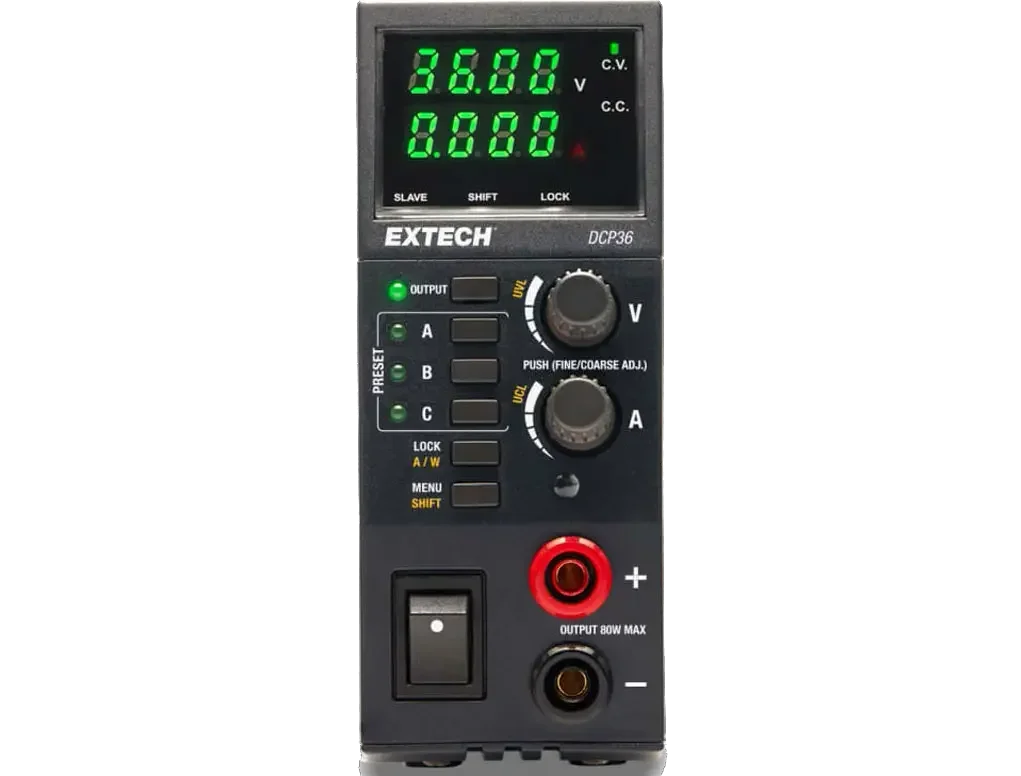

80W Switching DC Power Supply up to36Vdc,5Adc
80W Constant Power Topology with 0.5 to 36V and 0 to 5A autorange output.
Dual 4-digit LED displays with 10mV and 10mA resolution.
Lower display indicates Current or Watts.
Constant Voltage or Current.
3 user programmable presets for frequently used settings.
Upper voltage and current limit setting to protect UUT (Unit Under Test).
Specifications:
Voltage/Current 0.5 to 36V/0 to 5A;
Autoranging with 80W maximum output power (E x I = ≤80W)
Accuracy ±(0.5% + 5 counts)
Ripple & Noise ≤35mVpp
Line Regulation ≤4mV/≤10mA
Load Regulation ≤30mV/≤10mA
