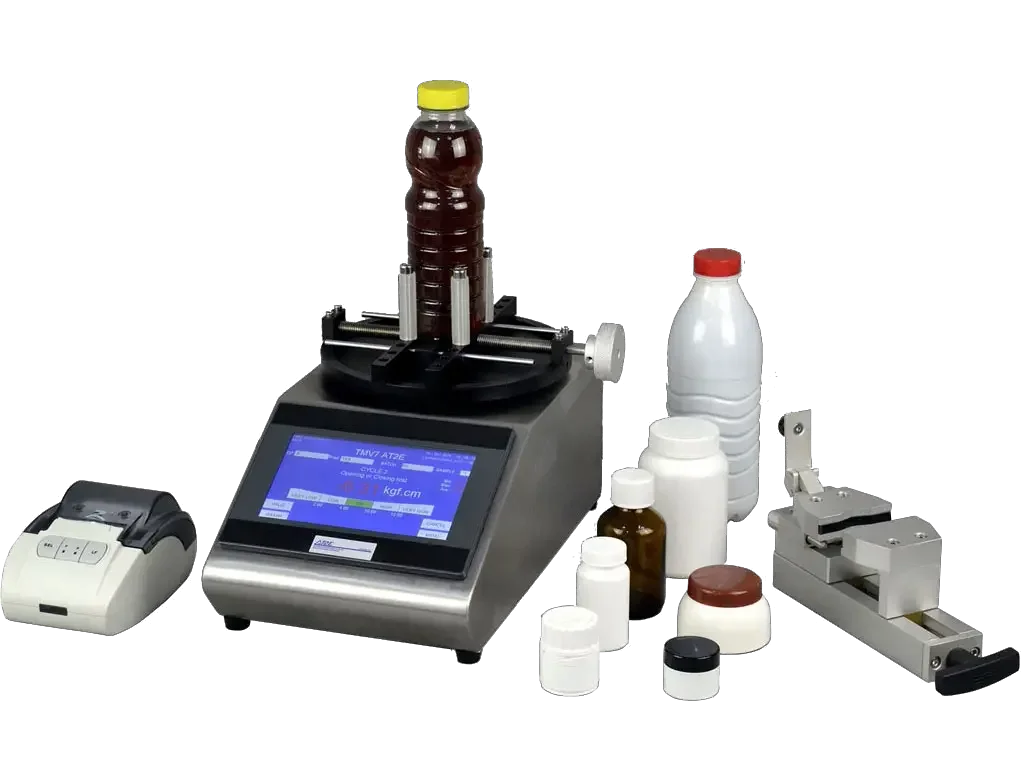

Torque tester are designed with a special mechanical system for measuring torque
which cancels most non-coaxial and top load influences on the measurement.
These features cancel most operator induced influences on the measurement for maximum repeatability.
7″ Touch screen color display
Measures opening and closing directions
0.030 to 4.000 Kgf.cm in high accuracy mode
Measuring range: 00.00 to 99.00 Kgf.cm
3 measuring modes (mean, peak, peak+infos)
Special mode RELEASING & BREAKING Torque
Units: Kgf.cm / Inch.lbs / daN.cm / N.m / N.cm
Accuracy: ± 0.2 % of full scale
30 product memory with 4 limits each
4 thresholds by product (V Low, Low, High, v High)
10 operators memory
8 Access levels with code (op, Super op, admin)
Storage and transfer up to 9999 measurements
Message + bar graph of torque value
Dynamic display: statistics, hour, date
Display: product name, operator, batch N°, line N°
Last measure curve
2 outputs: RS232 & mini USB (software & printer)
Language: French / Italian / Spanish / English
Delivered with ASTM calibration certificate
110 / 230 V – 50/60 Hz
Transportation case
Mechanical specifications:
Stainless steel frame
Choice of measuring table: Agro / Fast squeeze system
Dimensions: 370 x 215 x150 to 200 mm
Weight: 7 kg
