Equipment for Control of Resistance to Expand and Explosion of PET Bottle
or PET bottles – Simulating filling process

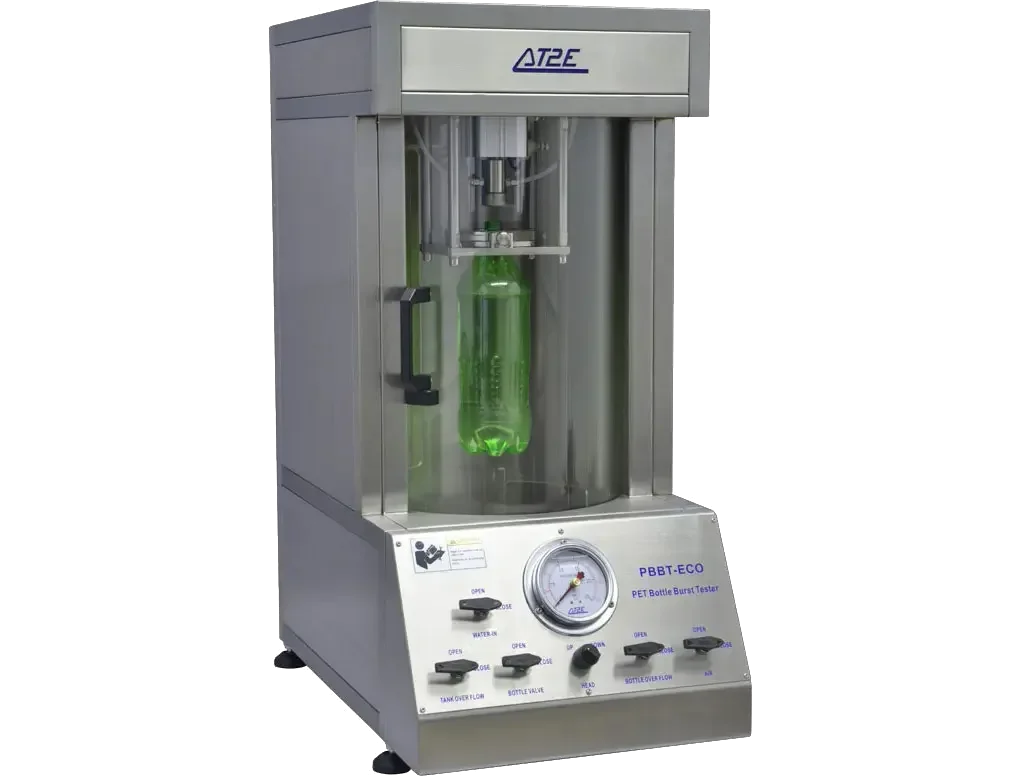

PBBT-PET Bottle Burst Tester is specialized test equipment for testing the PET bottles.
It’s designed in accordance with the three international test methods which are commonly used.
Users can choose the test method basing on their requirement.
The PBBT-ECO is capable to test the capacity of resilience under certain pressure or the rupture test of the PET bottle.
Through the reproduction of the pressurization,
the process has been linearized and it increases to the predetermined point or the point of bursting.
On PBBT-ECO the pressurizing process has been simplified by manual valve and analog displays.
Additional booster could be chosen. It may help the PBBT-ECO free of high pressure source.
Measuring range: 0 – 20 bar
Resolution: 0.2 bar
Sample range: Up to 3 L bottle
Expansion in volume: Up to 2 L
Pressure required: 3 bar water / 20 bar air source
Temperaturerange: 0 to 50 °C
Dimension: 725x512x925mm (L x P x H)
Weight: 60 kg
