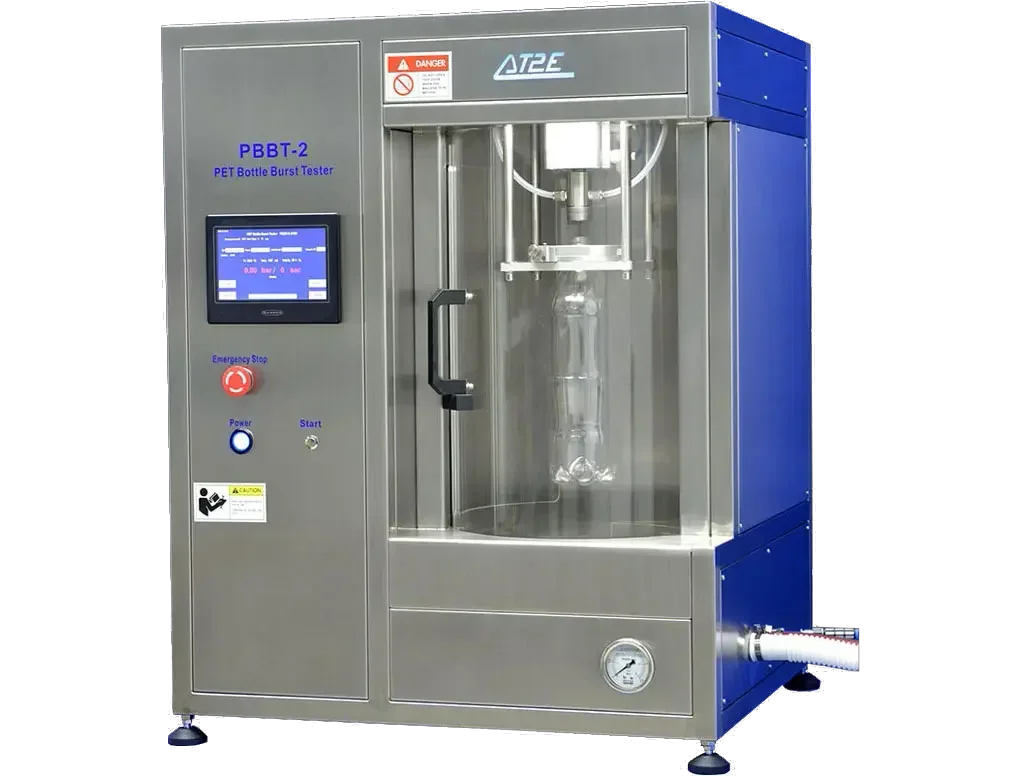

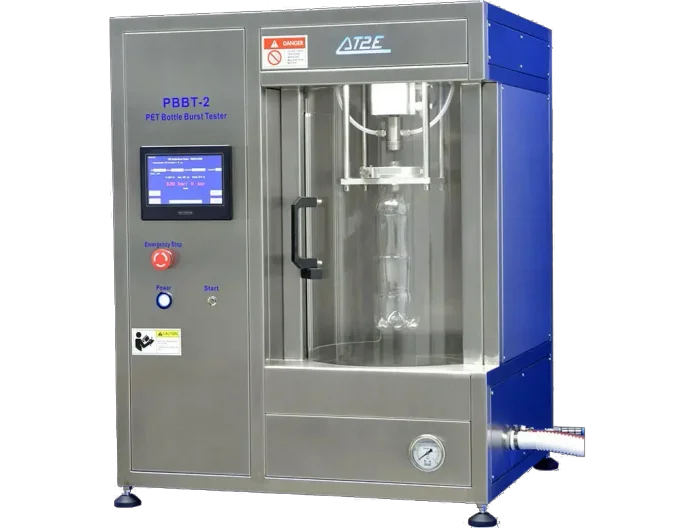

PET Bottle Burst Tester
(Equipment for Control of Resistance to Expand and Explosion of PET Bottle)
Bottle Burst Tester is specialized test equipment for testing the PET bottles.
It’s designed in accordance with the three international test methods which are commonly used.
Users can choose the test method basing on their requirement.
The PBBT-2 is capable to test the capacity of resilience under certain pressure or the rupture test of the PET bottle.
Through the reproduction of the pressurization,
the process has been linearized and it increases to the predetermined point or the point of bursting.
After selecting the test program, the cycle will start automatically depending on the settings.
The touch screen displays the pressure value in real time and record the maximum pressure and burst pressure.
Optional part water recycling system could provide way of saving water and avoiding the unsteady pressure of tap water which may influence a normal test.
Measuring range: 0 – 20 bar
Resolution:1 bar
Samplerange: Up to 2.5 L bottle
Expansionin volume: Up to 2 L
Power supply:115/230V,50 – 60Hz
Pressurerequired:3 barwater/ 20 bar air source
Temperature range: 0 to 50 °C
Rear Panel: RS232 serial output
Dimensions: 740 (L) × 500 (W) × 920 (H) mm
Net weight: 70 kg
