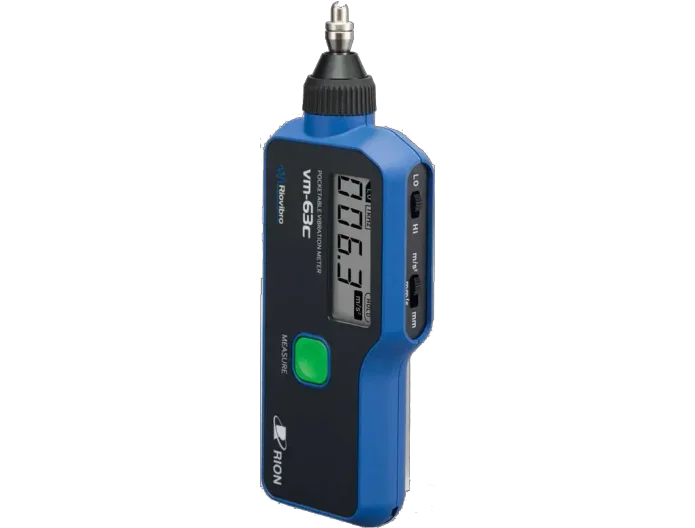

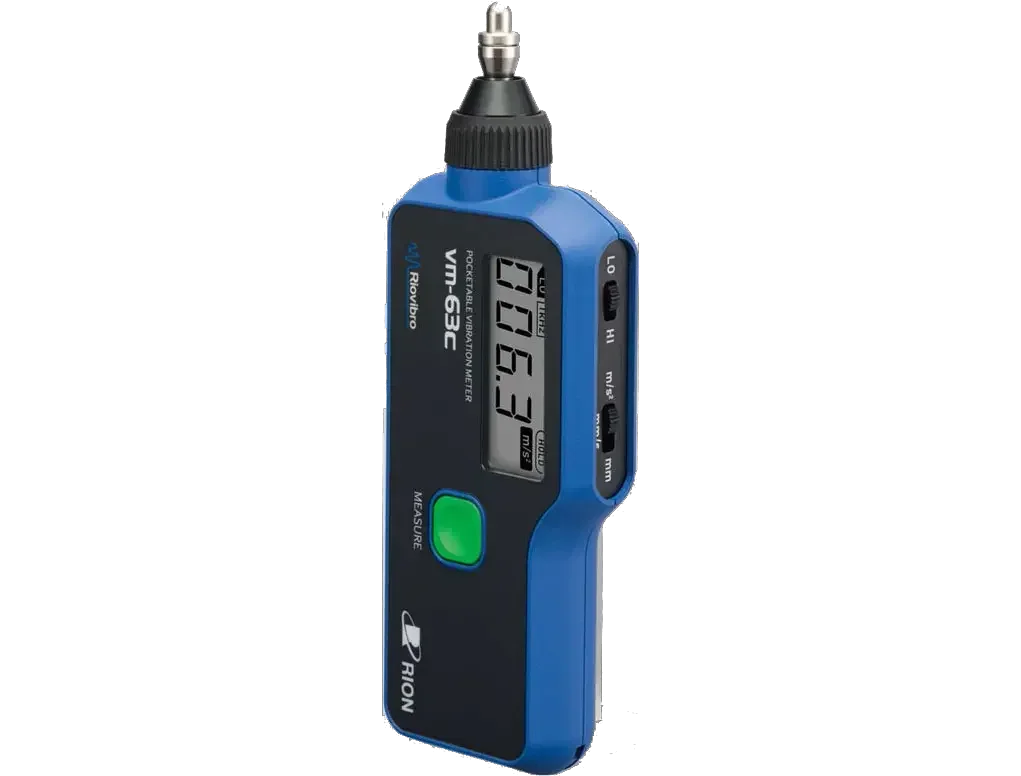

Pocket-size vibration meter with integrated accelerometer.
* Designed for quick and easy use in the field.
* Suitable for preventive maintenance of industrial equipment,
on-site quality control, product development, etc.
Applicable standards Chinese RoHS, CE marking
Type Piezoelectric accelerometer (shear type)
Measurement range
Acceleration 0.1 to 199.9 m/s2
EQ PEAK (RMS x √2)
Velocity 0.1 to 199.9 mm/s RMS
Displacement 0.001 to 1.999 mm EQ P-P (RMS x 2√2)
Measurement Between Outside of temperature
accuracy (80 Hz) -10 ºC and +50 ºC range at left
Acceleration ±5 % ±2 digits ±8 % ±2 digits
Velocity ±5 % ±2 digits ±8 % ±2 digits
Displacement ±10 % ±2 digits ±15 % ±2 digits
Vibration frequency range
Acceleration 10 Hz to 1 kHz (LO) 1 kHz to 15 kHz (HI)
Velocity 10 Hz to 1 kHz
Displacement 10 Hz to 1 kHz
Display Display value is held when MEASURE button is released
Measurement value display 3 1/2 digits, digital (LCD)
Display update rate Approx. 1 s
Signal output Earphone (VP-37) can be connected
Output impedance Approx. 170 Ω
Load impedance Approx. 10 kΩ or higher
AC output Approx. ±2 V PEAK
Power supply IEC R6 (size AA) batteries (alkaline / manganese or
nickel-hydride rechargeable batteries) x 2
Current consumption Approx. 35 mA
Battery life About 50 h continuous use (at 25 ºC, with alkaline batteries)
Ambient conditions for operation -20 ºC to +60 ºC, 90 % RH or less (no condensation)
Dimensions and weight Approx. 178 (H) x 64 (W) x 27 (D) mm, approx. 200 g (incl. batteries)
Supplied accessories IEC R6 (size AA) alkaline batteries x 2,
silicone rubber case x 1,Attachment S x 1
