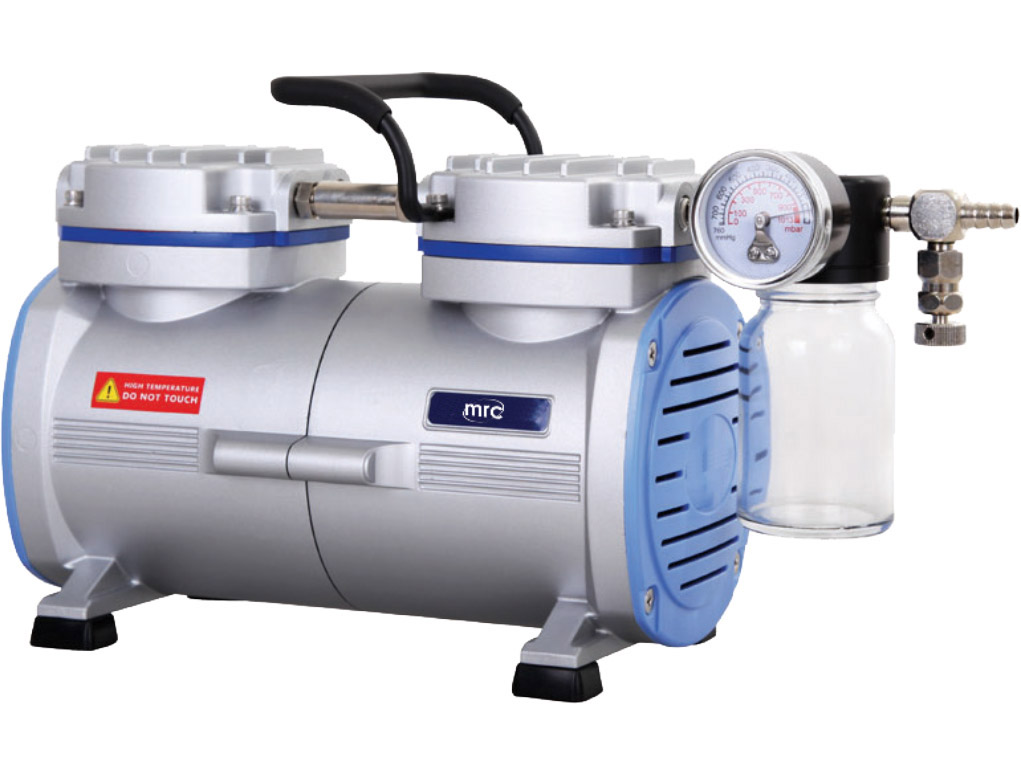

PTFE Coated Chemical Resistant Vacuum Pump,20L/min,25mbar

PTFE Coated Chemical Resistant Vacuum Pump 20 liter/min 33mbar 3

PTFE Coated Chemical Resistant Vacuum Pump 20 liter/min 33mbar 3

PTFE Coated Chemical Resistant Vacuum Pump
Oil free
Power 80watt 1/6 horsepower
20liter/minute,25miliibar,10torr,-750mmHg,99.9kPa
Port thread 5/16"
Eternal dimensions:298*143*172mm
weight 5.2kg
Include moisture trap and vacuum regulator
Overheat protector
Low nois

Type: Piston Pump

CATALOG NUMBER: VP-19C

Type

Piston Pump

Max. Flow (l/min)

20

Vac. Pressure (mbar)

33

PTFE Coated Chemical Resistant Vacuum Pump
Oil free
Power 80watt 1/6 horsepower
20liter/minute,25miliibar,10torr,-750mmHg,99.9kPa
Port thread 5/16"
Eternal dimensions:298*143*172mm
weight 5.2kg
Include moisture trap and vacuum regulator
Overheat protector
Low nois

TECHNICAL DATA

Type

Piston Pump

Max. Flow (l/min)

20

Vac. Pressure (mbar)

33

FUNCTIONS

DESCRIPTION

PTFE Coated Chemical Resistant Vacuum Pump
Oil free
Power 80watt 1/6 horsepower
20liter/minute,25miliibar,10torr,-750mmHg,99.9kPa
Port thread 5/16"
Eternal dimensions:298*143*172mm
weight 5.2kg
Include moisture trap and vacuum regulator
Overheat protector
Low nois

ACCESSORIES

VIDEOS

DOCUMENTATION

DOWNLOAD

REQUEST A QUOTE

Straight connector for PP pumping, made by AZLON, size 7-10 mm

Straight connector for PP pumping, made by AZLON, size 6-8 mm

Hose Barb,1/8 PT, 6/16 in.(9.5mm) for VP-17/19

Hose Barb,1/8 PT, 5/16 in.( 8mm)

Hose Barb,1/8 PT, 5/16 in.( 8mm) For VP-17/34

Hose Barb,1/8 PT, 3/16 in.(4.8mm) for VP-17/34

Hose Barb,1/8 PT, 2/16 in.(3.2mm) for VP-17/34

Hose Barb,1/8 PT, 1/4 in.(6.4mm)

L type connector, 1/8 PT, 5/16 in.( 8mm) for VP-17/34

Moisture Trap / Vacuum Regulator for VP-17C/34C
