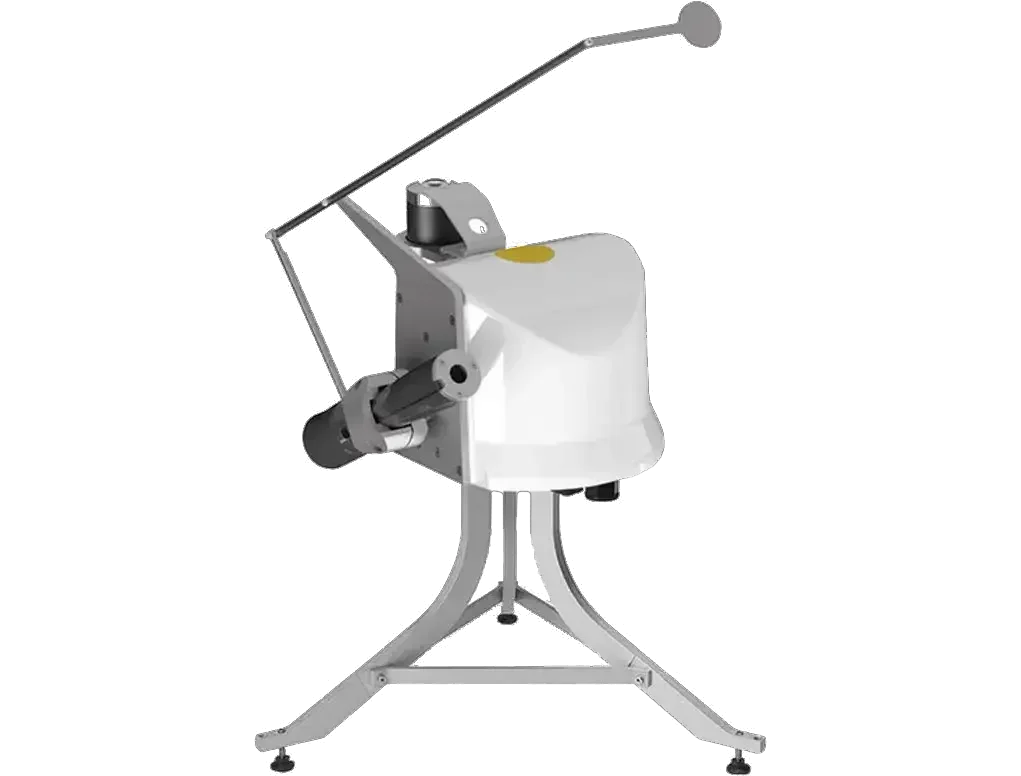

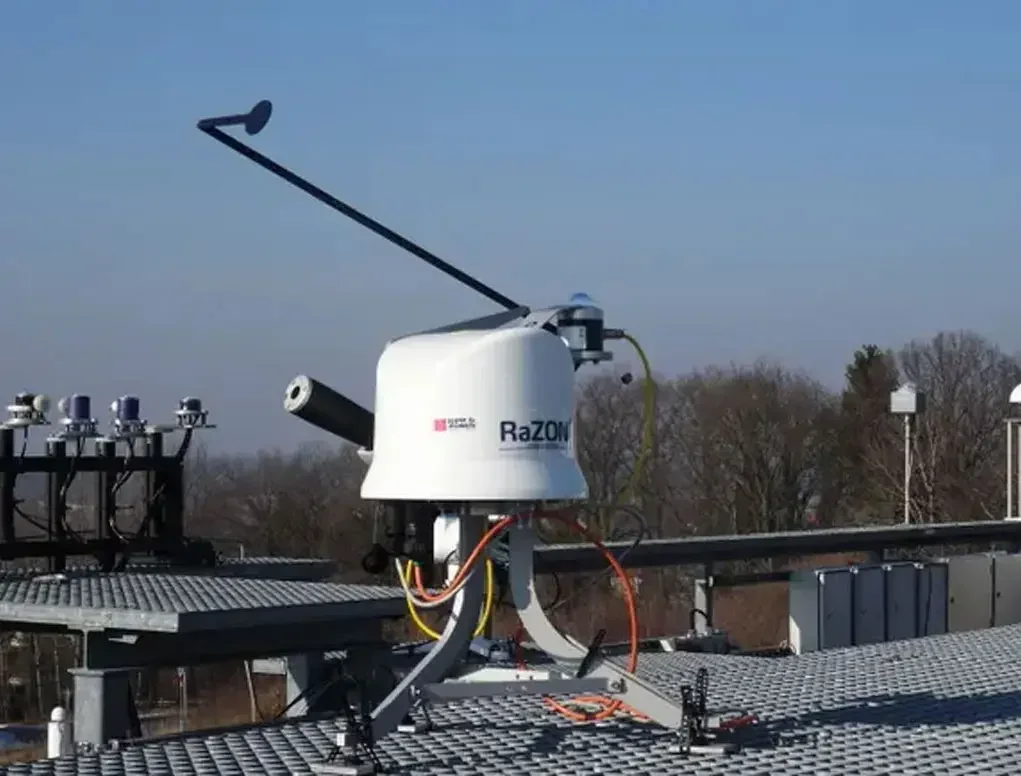

RaZON+ is an all-in-one system that accurately measures
both direct normal irradiance (DNI)
and diffuse horizontal irradiance (DHI) from the sun and sky,
enabling it to provide very reliable values of
global horizontal solar irradiance (GHI) and sunshine duration.
Pointing accuracy0.2°
Supply voltage DC24 V
Power consumption13 W
Operating temperature-20 to +50 °C °C
Ingress protectionIP 65
TransmissionGear drives
Communication interfaceRS-485 Modbus® for external sensor/system, RS-485 to host, Modbus® or ASCII, Ethernet RJ-45
BatteriesStandard
Data logging1 minute average
