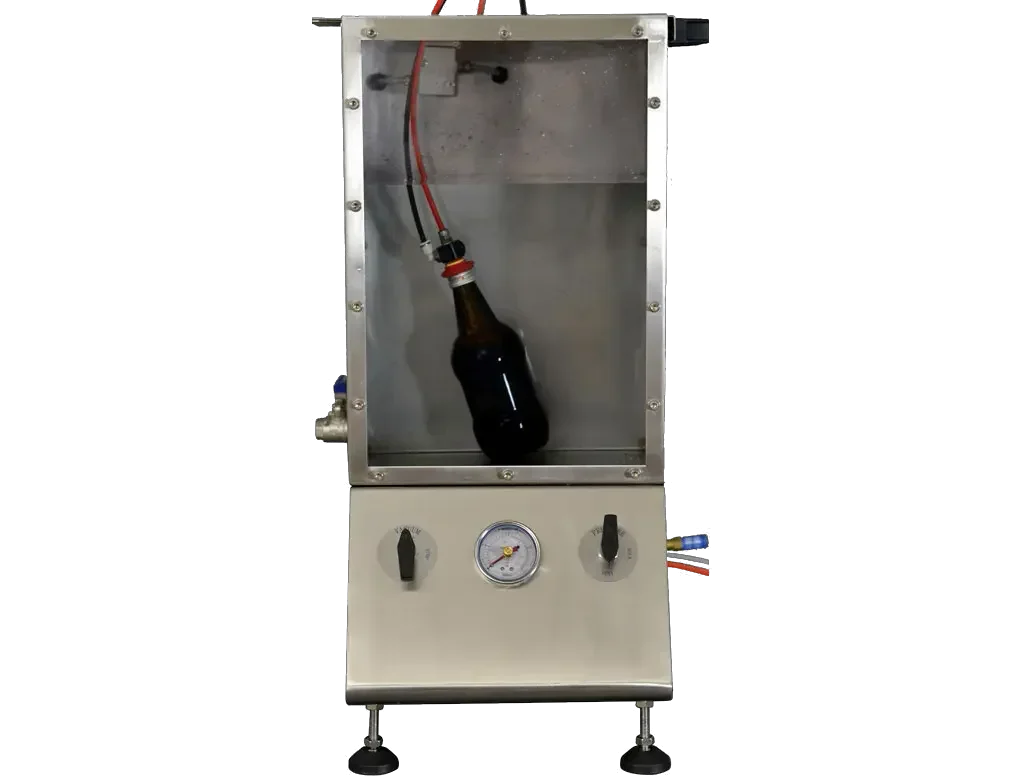

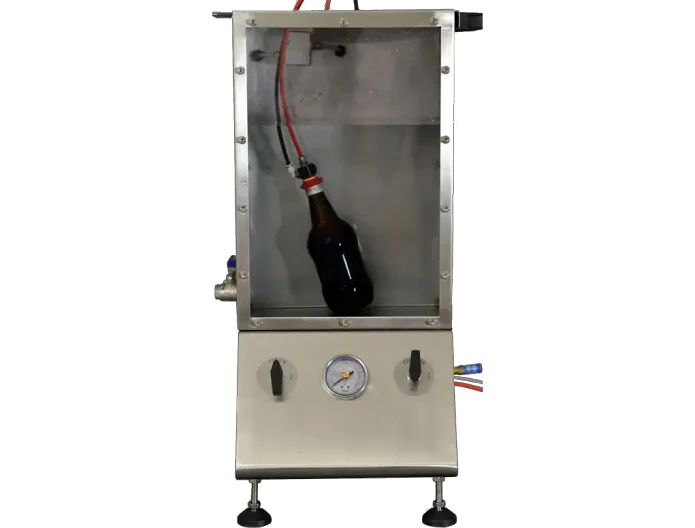

Secure seal analyzer is for testing the secure seal performance of products.
With AT2E patent needle,
it makes the installation and piercing very quick and easy in any medium.
By vacuum technology and special design,
the needle uses a function of self-holding on the tested products. However,
the SSA-ECO can be compatible with using the needle of the classic Secure Seal Tester (typical screwed needle).
It’s stainless steel design makes it resistant of any explosion during the test and ensures the safety of the operator.
Measuring range: 0 to16.00bar
Resolution: 0.5 bar
Testson bottles,cans andpreforms
AT2E patent special needle
Analog display
Units:bar /Psi
Stainless steel secured device
Setting of the level of pressure (regulator)
Resistant toexplosions
Setting maximumpressure: 16 bar
Compatiblewithtypical screwed needles
5-8 bar pressure source for vacuum function
0-16 bar pressure source for testing
Overall size: 390 (L) x 550 (W) x 690 (H) mm
Net weight: 25 kg
