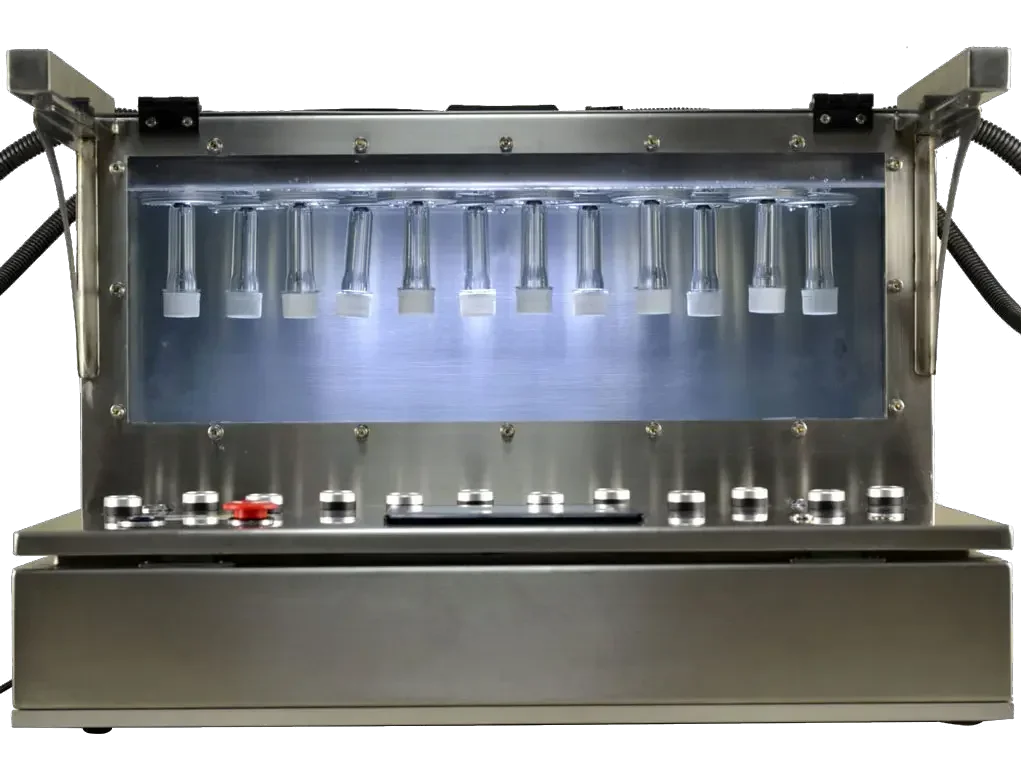

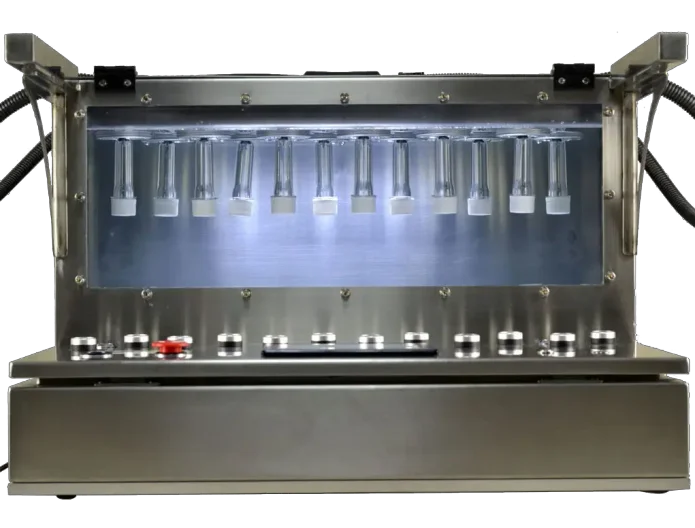

Muilt-position design, more convenient and efficient.
PLC control ensures the high accuracy and reliability.
Stainless steel frame, more safe and duable.
Flexible position selection, each position can be controlled separately by system,
users can choose to enable the positions (from 1 to 12) according to their needs.
Linear pressurizing, able to set up to 4 pressurization steps,
and hold the pressure according to the predefined period.
Auto pressure compensation during test process
Special designed clamping device,
enhanced the sealing performance of test.
Anti-explosion and clear observation window,
safe and easy to observe the sample status during tests.
Measure range: 00.00 – 16.00 bar
Accuracy: ± 0.5 % F.S.
Display resolution: 0.01 Bar
Units: Bar, psi
Sample range: cap
7” LCD touch screen
Up to 4 pressurization steps (4 target pressure)
testing pressure: 16 Bar
Air supply: 0-16 Bar (Air supply ≥Max. testing pressure)
Dimension: 705×900×465 mm
