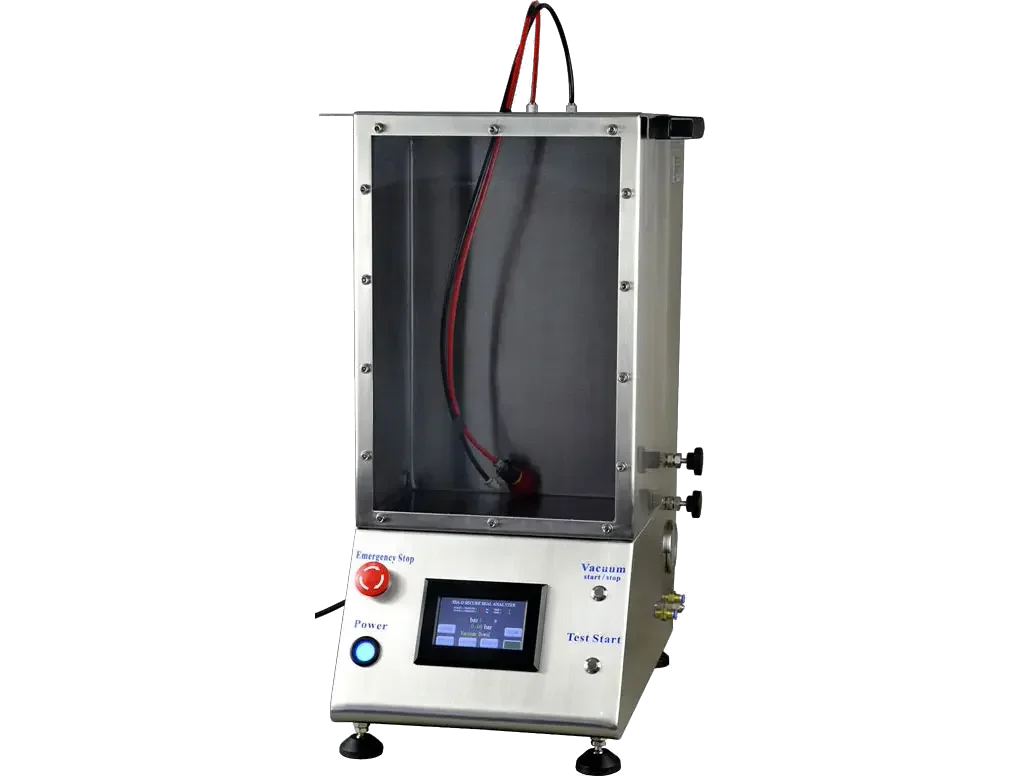

For testing the secure seal performance of products.
With AT2E patent needle, it makes the installation and piercing very quick and easy in any medium.
By vacuum technology and special design,
the needle uses a function of self-holding on the tested products.
However, the SSA-D can be compatible with using the needle of the classic Secure Seal Tester (typical screwed needle).
It’s stainless steel design makes it resistant of any explosion during the test and ensures the safety of the operator.
SSA-D is equipped with a touching screen.
It‘s visual and easy to operate.
Adjustable pressure and holding time stage setting meets different test requests of various products
Measuring range: 0 to16.00bar
Resolution: 0.01 bar
Testson bottles,cans andpreforms
AT2E patent special needle
Touching screen display
Units:bar /Psi
Stainless steel secured device
Setting of the level of pressure (regulator)
2 stages of pressure and holding time setting
Resistant toexplosions
Setting maximumpressure: 16 bar
Compatiblewithtypical screwed needles
5-8 bar pressure source for vacuum function
0-16 bar pressure source for testing
Overall size: 390 (L) x 550 (W) x 750 (H) mm
Net weight: 30 kg
