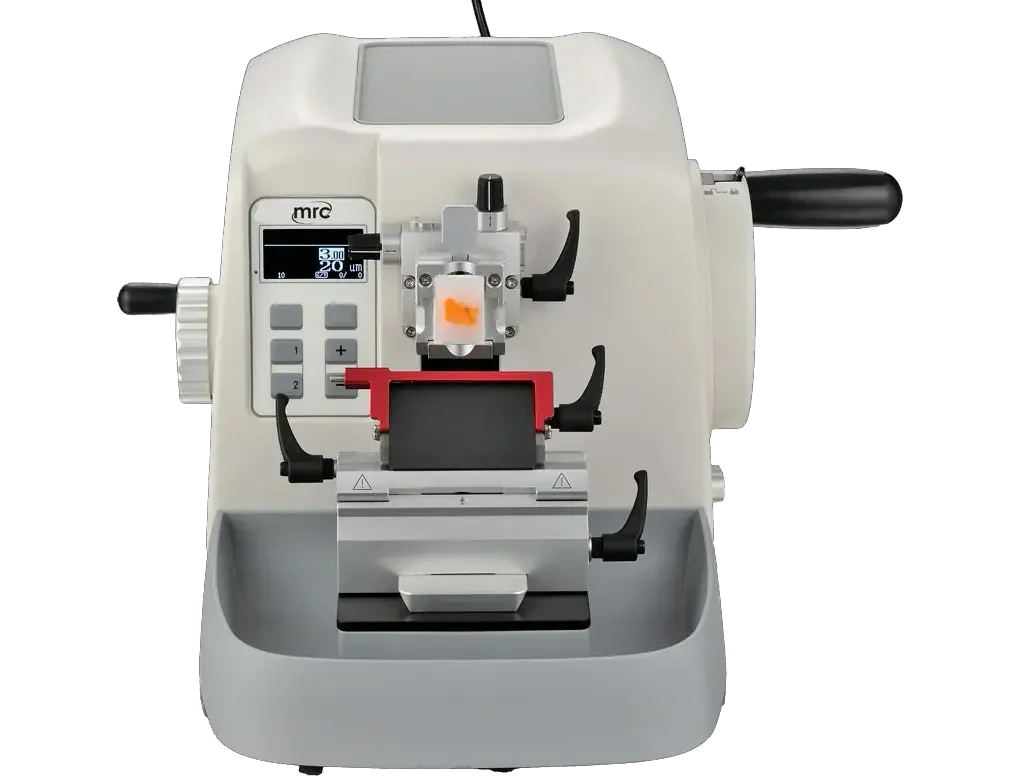

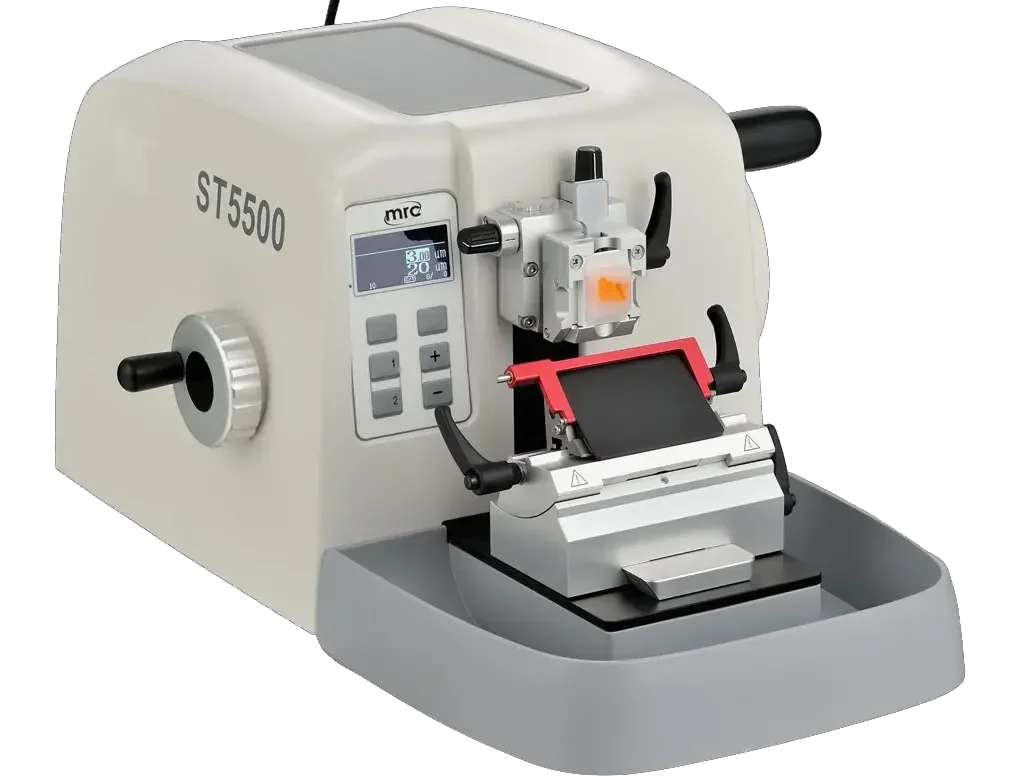

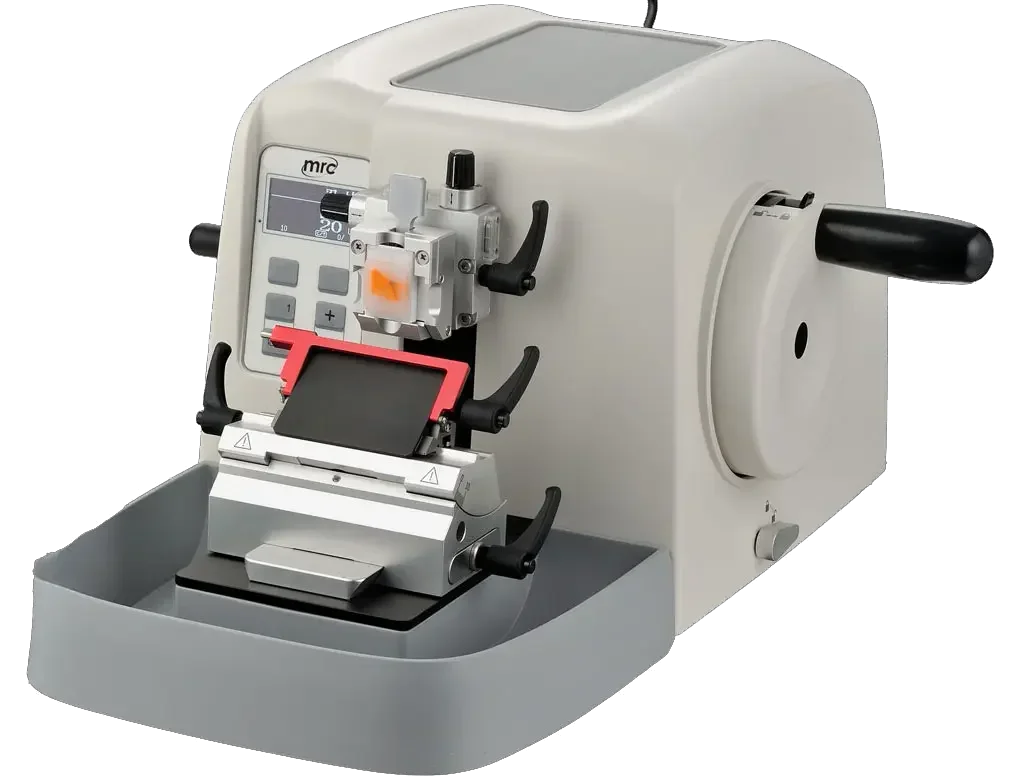

Semi-automated Rotary Microtome

Semi-automated Microtome
Section Thickness Setting Range: 0.25 - 100μm
Trimming Thickness Setting Range: 1 – 600μm
Retraction Setting Range: 0—100μm ( 0 is off )
Whole layer clearance distance Range: 10 – 6000μm
 Minimum Setting of Sectioning Thickness: 0.25μm
 Total Horizontal Specimen Feed: 30mm
 Vertical Specimen Stroke: 70mm
 Movement Range of the Base of Blade Holder Base: 0-65mm (front to back)  Movement Range of the Blade Press plate: 0-20mm
 Cutting/Trimming count number: 0~9999
 Specimen Clamp Rotation: at any angle within 360 degrees.  Specimen Orientation: XY – 8°  Maximum Specimen Size:60×70mm (optional clamp)  Feed speed adjust: 2000μm/s  Precision Error:±1%
 Working Voltage: AC 220V±10% 50Hz (standard model) / AC110V±10% 60HZ
 Power:100W
 Dimensions:480×410×310 mm (W×D×H)  Net weight:28k

CATALOG NUMBER: HIS-ST5500

Semi-automated Microtome
Section Thickness Setting Range: 0.25 - 100μm
Trimming Thickness Setting Range: 1 – 600μm
Retraction Setting Range: 0—100μm ( 0 is off )
Whole layer clearance distance Range: 10 – 6000μm
 Minimum Setting of Sectioning Thickness: 0.25μm
 Total Horizontal Specimen Feed: 30mm
 Vertical Specimen Stroke: 70mm
 Movement Range of the Base of Blade Holder Base: 0-65mm (front to back)  Movement Range of the Blade Press plate: 0-20mm
 Cutting/Trimming count number: 0~9999
 Specimen Clamp Rotation: at any angle within 360 degrees.  Specimen Orientation: XY – 8°  Maximum Specimen Size:60×70mm (optional clamp)  Feed speed adjust: 2000μm/s  Precision Error:±1%
 Working Voltage: AC 220V±10% 50Hz (standard model) / AC110V±10% 60HZ
 Power:100W
 Dimensions:480×410×310 mm (W×D×H)  Net weight:28k

TECHNICAL DATA

FUNCTIONS

DESCRIPTION

Semi-automated Microtome
Section Thickness Setting Range: 0.25 - 100μm
Trimming Thickness Setting Range: 1 – 600μm
Retraction Setting Range: 0—100μm ( 0 is off )
Whole layer clearance distance Range: 10 – 6000μm
 Minimum Setting of Sectioning Thickness: 0.25μm
 Total Horizontal Specimen Feed: 30mm
 Vertical Specimen Stroke: 70mm
 Movement Range of the Base of Blade Holder Base: 0-65mm (front to back)  Movement Range of the Blade Press plate: 0-20mm
 Cutting/Trimming count number: 0~9999
 Specimen Clamp Rotation: at any angle within 360 degrees.  Specimen Orientation: XY – 8°  Maximum Specimen Size:60×70mm (optional clamp)  Feed speed adjust: 2000μm/s  Precision Error:±1%
 Working Voltage: AC 220V±10% 50Hz (standard model) / AC110V±10% 60HZ
 Power:100W
 Dimensions:480×410×310 mm (W×D×H)  Net weight:28k
