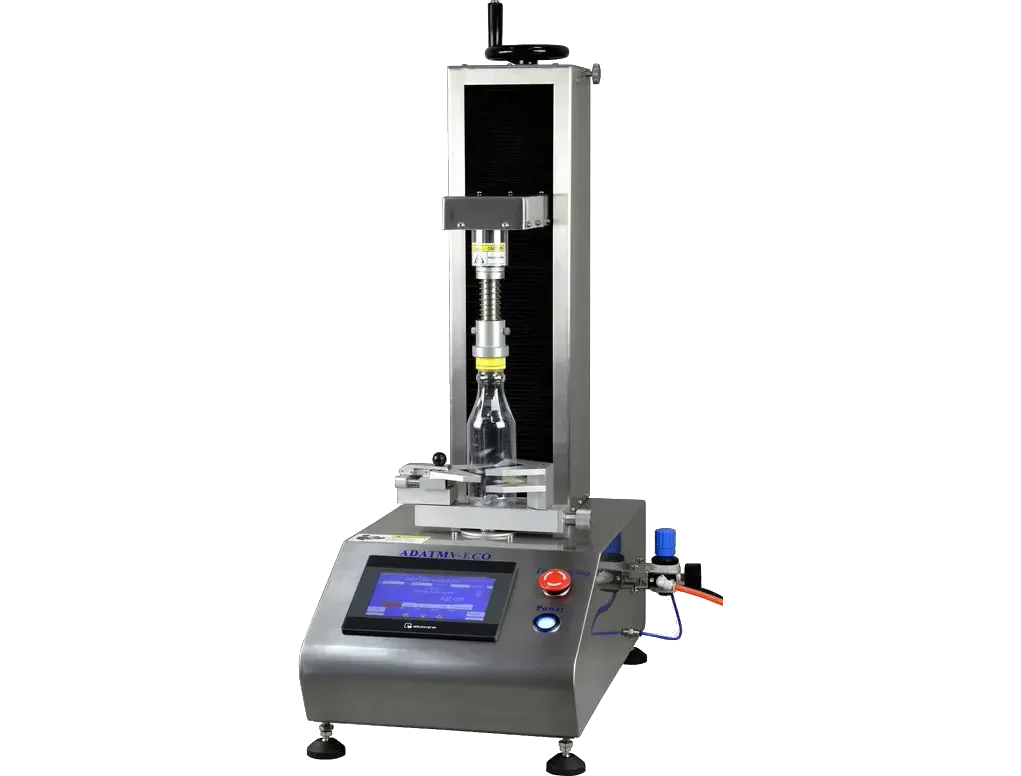

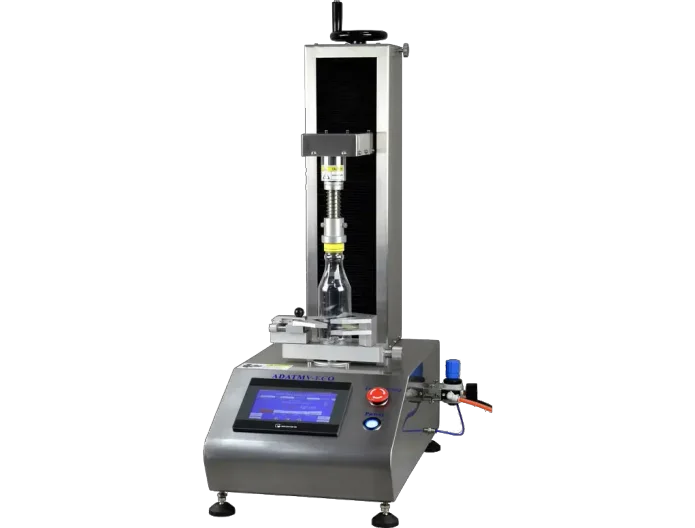

Semi-Automated Torque Tester
(Comply with the requirements of FDA – CFR 21-11)
Using by touch screen display
Measures in opening and closing directions
Measuring range: 00.00 to 99.00 Kgf.cm
3 measuring cycles (constant reading, Opening or Closing, Removal +Breaking)
Units: Kgf.cm / N.m / Inch.lbs / N.cm
Rotating speed adjustable
Accuracy: ± 0.5 % of full scale
30 products memorization
10 thresholds (limits) option
10 operators memorization
Configuration by protected password (administrator)
Memorization up to 9999 measures (transferable)
Dynamic display: statistics / hour / date
Display: product name / operator / batch N° / Sample N°
1 USB output and 1 printer output (software & printer)
Language: English
Delivered with calibration certificate COFRAC
110 / 230 V – 50/60 Hz
Automated part:
Automatic zero before restarting cycle
Settable height of column for all samples
Easy-fast selector for cycles
Settable speed for screwing and unscrewing operations
Mechanical specifications:
Stainless steel Frame
Choice of jaw, or bottle neck clamp
Dimensions: 350 x 590 x 950 mm
Weight: 50 kg
