Thermal Oxidation Stability of Aviation Fuels

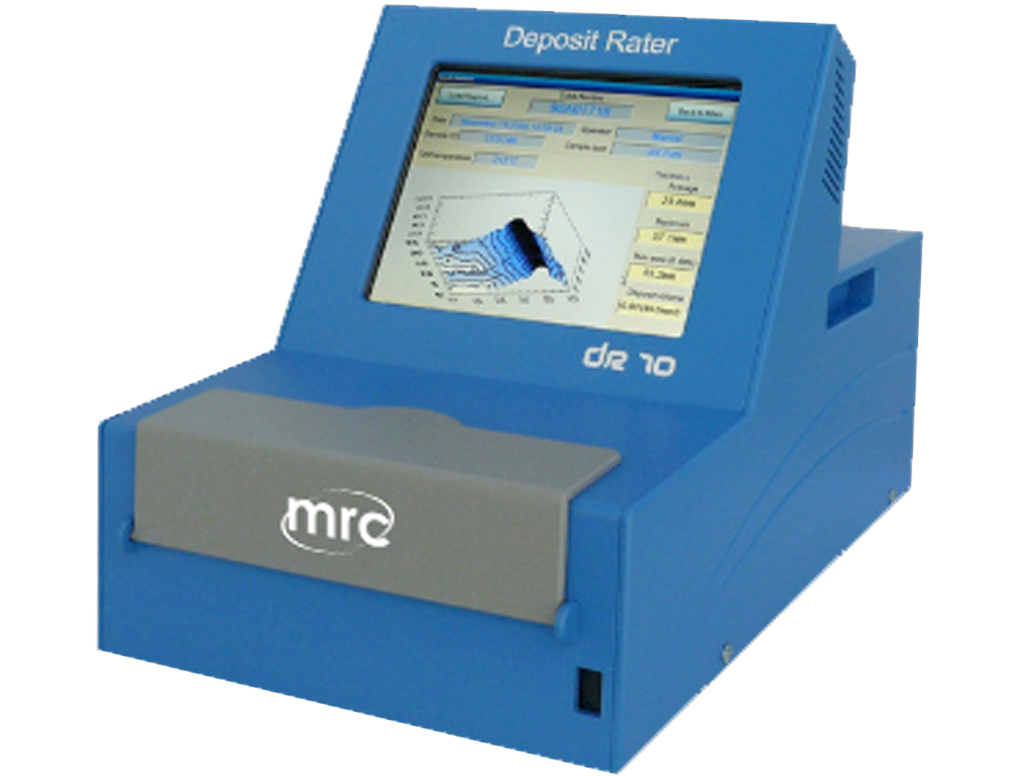

ITR Heater Tube Deposit Rater
ASTM D3241 (Annex 2), IP323 (Annex C)
ASTM D1655, ASTM D7566, ISO 6249,
Def Stan 91-91, JIG (AFQRJOS)
Average thickness10 to 1200 nm
Maximum thickness10 to 1200 nm
Maximum thickness on 2,5 mm² area10 to 1200 nm
Deposit volume0 to 0.5 mm³
Databaseup to 100 000 results with curves;
Number of measurement points1,200 points
Results storageUp to 100 000 results
LAN connectivityEthernet port RJ45
Printer outputSerial port (printer is optional)
Data outputUSB(2), Ethernet
DimensionsW x D x H (mm): 250 x 160 x 290
W x D x H (inches): 10" x 16" x 12"
Weight10kg (22lb)
Electrical112 to 230V - 2A - 50/60Hz
