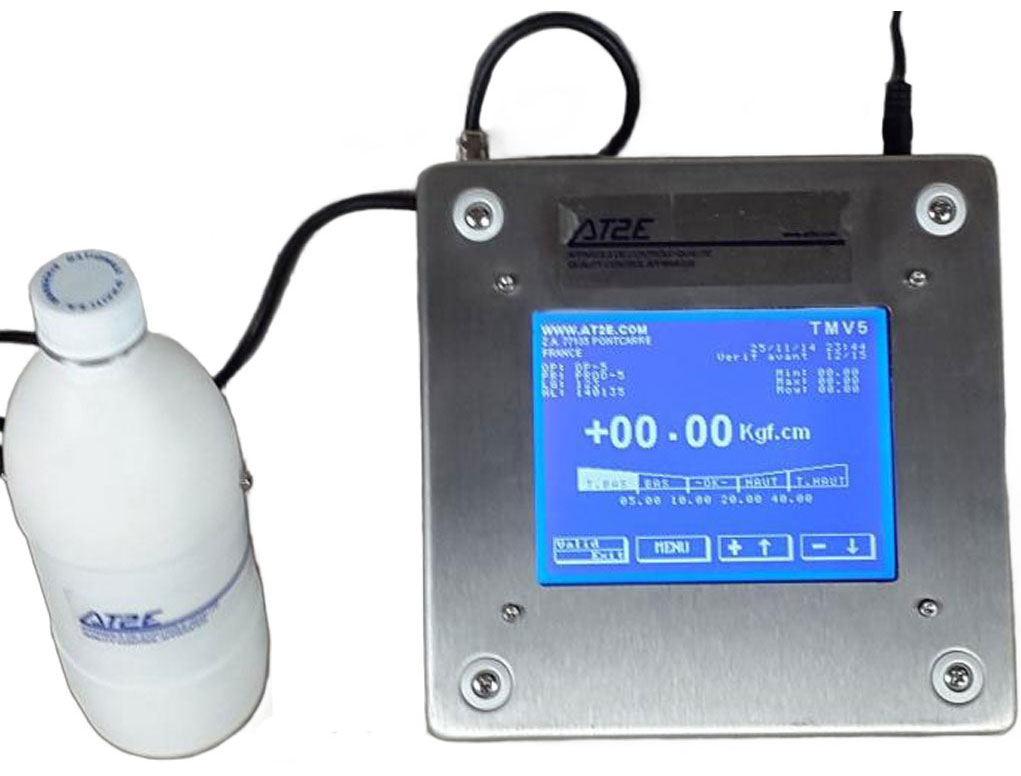

torque meters are designed with a special mechanical system
for measuring torque which cancels most non- coaxial
and top load influences on the measurement.
These features cancel most operator influences on
the measurement for maximum repeatability.
Touch screen display
Measurements in opening and closing directions
Measuring range: 00.00 to 99.00 Kgf.cm
3 measuring modes (mean, peak, peak+info)
Units: Kgf.cm / Inch.lbs / daN.cm / N.m / N.cm
Accuracy: ± 0,2 % of full scale
50 product memory with 4 limits each
4 thresholds by product (Low, v Low, High, v High)
15 operator memory
Setting of files by administrator code
Store and transfer up to 1000 measurements
Message + bar-graf f(x) of torque value
Dynamic display: statistics, hour, date
Display: product name, operator, batch N°, line N°
2 RS USB output (PC – printer)
Language: French, Italian, Spanish, English, German
Delivered with calibration certificate COFRAC
110 / 230 V – 50/60 Hz
Mechanical specifications:
Stainless steel frame / IP 64
Choice of measuring table: Food/Cosmetic/Pharmacy
Optional battery
Dimensions: Customize
Weight: 7 kg
