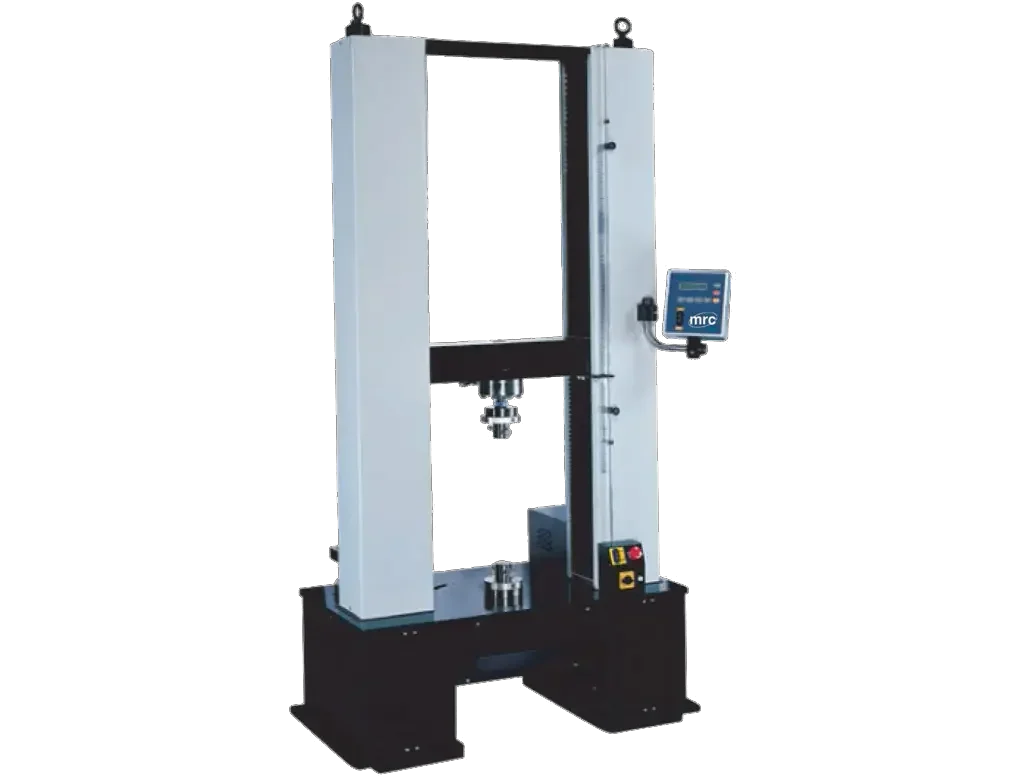

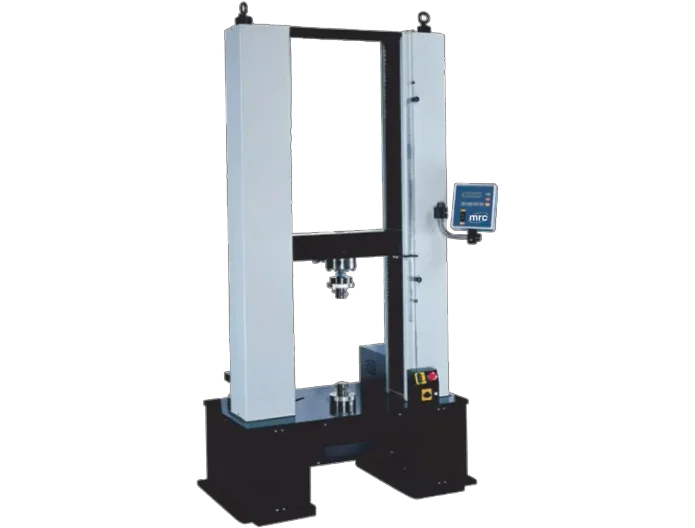

Universal Tensile Test Machine Up to 10 ton

Universal Tensile Test Machine Up to 10 ton 3

Universal Tensile Test Machine Up to 10 ton 3

Max capacity:100 KN (10,000 kgf)
Travel resolution:0.005 mm
Speed:0.3~350 mm/min
Motor speed:1.0kw
Speed accuracy:±0.5%
AC servo motor
Testing space:550 mm
Dimensions:115x65x220(H) cm
Power supply:1Ø200~240 V AC, 15A
PC-Port:usb
Data Sampling Rate 5K Hz
Stroke(w/o grips) 1000 mm

CATALOG NUMBER: UTM-503B1

Max. Load

up to 10ton

Max capacity:100 KN (10,000 kgf)
Travel resolution:0.005 mm
Speed:0.3~350 mm/min
Motor speed:1.0kw
Speed accuracy:±0.5%
AC servo motor
Testing space:550 mm
Dimensions:115x65x220(H) cm
Power supply:1Ø200~240 V AC, 15A
PC-Port:usb
Data Sampling Rate 5K Hz
Stroke(w/o grips) 1000 mm

TECHNICAL DATA

Max. Load

up to 10ton

FUNCTIONS

DESCRIPTION

Max capacity:100 KN (10,000 kgf)
Travel resolution:0.005 mm
Speed:0.3~350 mm/min
Motor speed:1.0kw
Speed accuracy:±0.5%
AC servo motor
Testing space:550 mm
Dimensions:115x65x220(H) cm
Power supply:1Ø200~240 V AC, 15A
PC-Port:usb
Data Sampling Rate 5K Hz
Stroke(w/o grips) 1000 mm
