Max Capacity: 50kN / 5000Kg
Max Speed (MM/MIN): 05-500
Travel (MM) : 1000
Space (MM): W420
Dimensions: 90x60x195cm
Type/ Column: Floor/Two
Resolution: 1/100,000. (1/1000 to 1/200,000
adjustable)
2. Load Cell: Conform to ASTM-E4, difference within
1.0%
3. Precision of Force: 5~100% within ±0.5%, 1~5% within
±1%
4. Precision of speed: 1~500mm/min ±1%

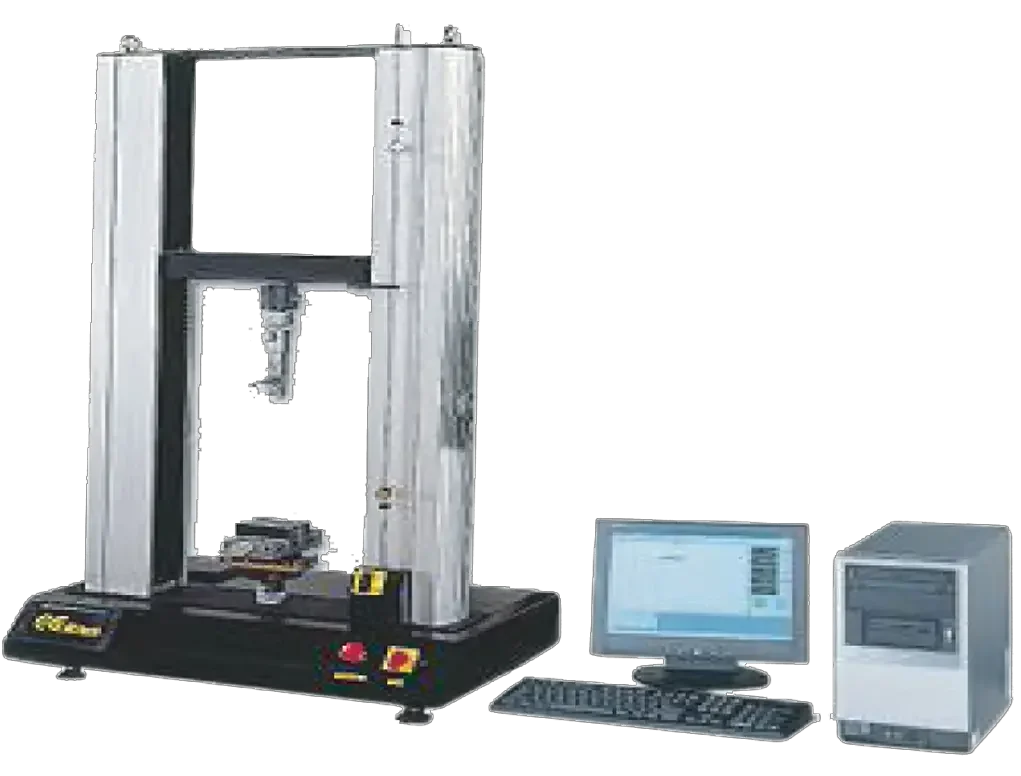

A1 series is a completely computer controlled material testing machine with AC
server motor, ball screws and timing belt for a high precision testing result.
2. Test for various material such as rubber/ plastic / tape /textile/ electrical
product…
Option:
Various Grips, Fixtures, plates or Custom Item
Extensometer
Additional Load Cell
Custom Testing Method in program
Temperature and humidity Chambers
