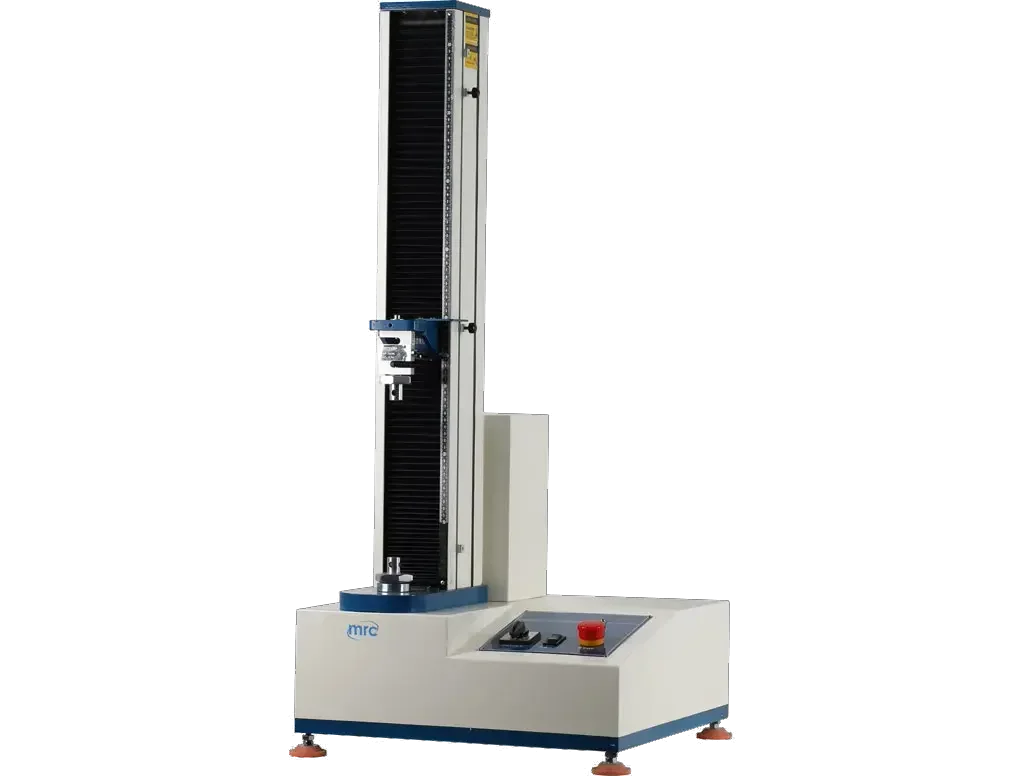

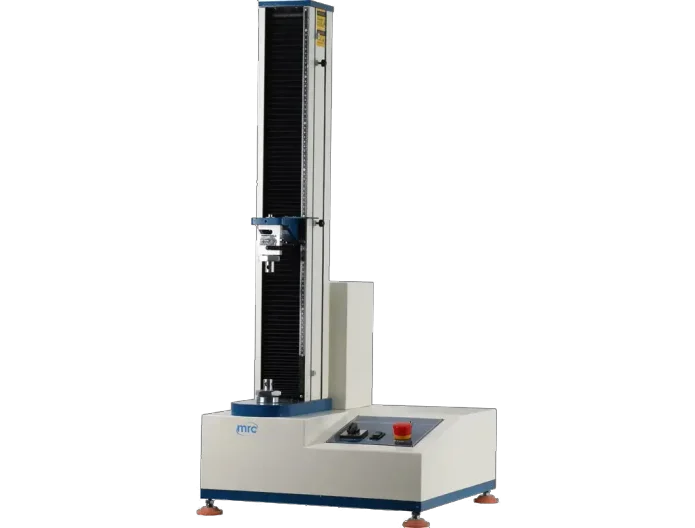

Universal Material Tensile Testing Machine
Quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Specifications:
Capacity choice: 1,2,5,10,20,50,100,200,500kg optional
Stroke: 650mm(excluding clamp)
Range of speed: 50~500mm/min
Effective testing space: 120mmMAX
PC is not included
Accuracy: ±0.5%
Operation method: Windows operation
Motor: AC motor
Optional accessories: stretcher, air clamp
Resolution: 1/150,000
Weight: 70kg
Dimention: (W×D×H)58×58×125cm
Power: 1PH, AC220V, 50/60Hz
