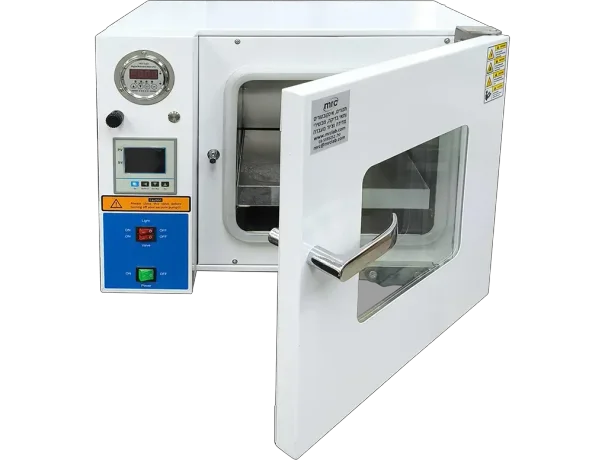

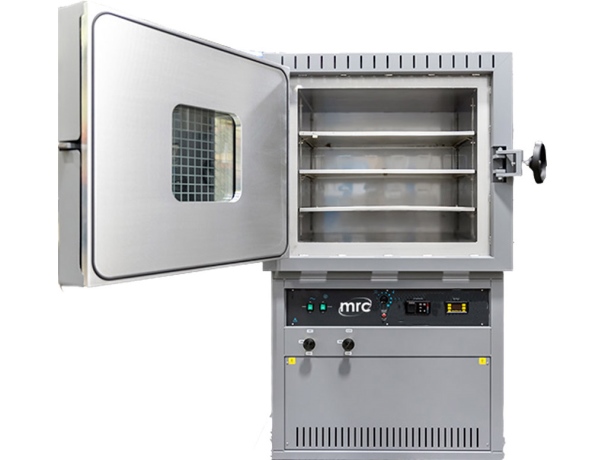

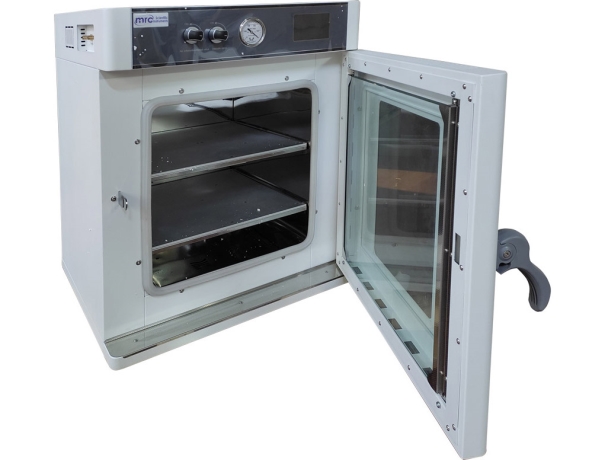

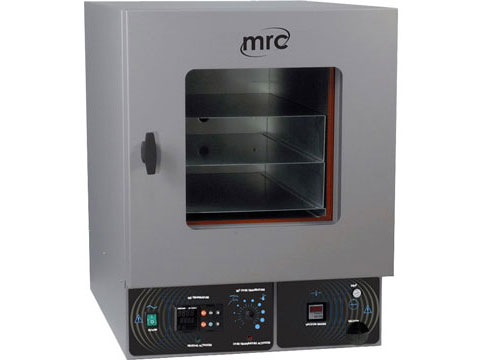

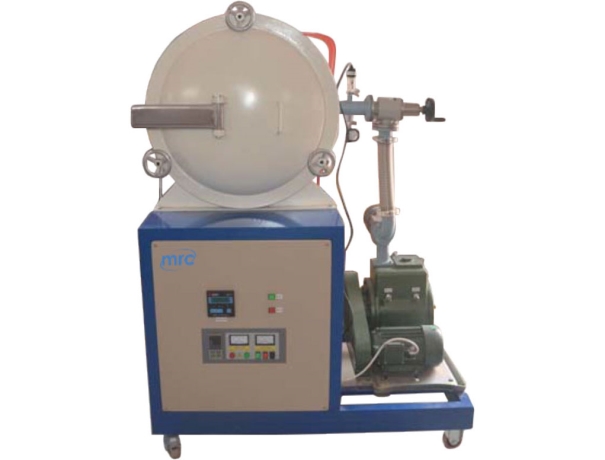

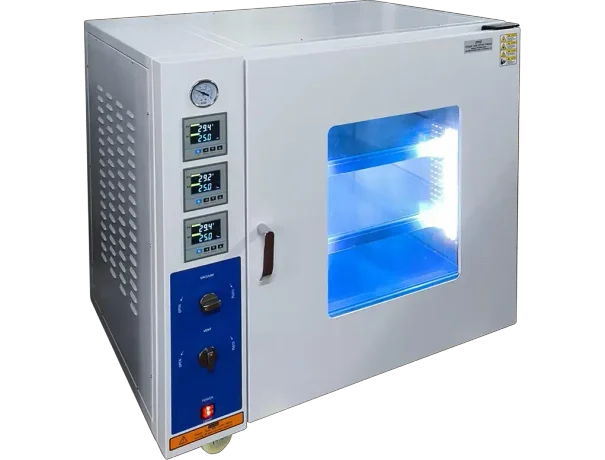

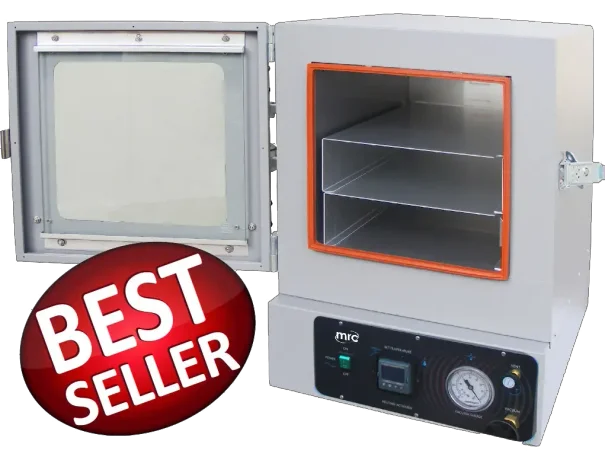

Vacuum ovens are ovens designed for temperatures up to 200 degrees Celsius. The inner chamber of the vacuum ovens is made of stainless steel. Vacuum furnaces designed for temperatures up to 1000 degrees Celsius. A vacuum oven is designed for various uses in laboratories, and research institutes to dry and heat objects in a vacuum environment.
-The oven is primarily used for desiccating, vacuum embedding, plating and electronic component processing
What is a Vacuum Oven
vacuum drying oven is mostly used for delicate drying processes like dehumidification, drying tiny particles, or removing flammable solvent without cooking them. A vacuum oven is used to dry equipment of negative pressure. Heat is produced from the sidewall and needs a vacuum pump to produce a low-pressure surrounding which minimizes oxidation during drying.
Applications Vacuum ovens:
The use of vacuum ovens is in the following cases:
-Removal of bubbles, for example from epoxy castings, coating with epoxy layers or varnish.
-Flammable materials or bombs like solvents, oxygen removal prevents fire ignition. The solvent that comes out of the oven can be taken out into the air or recycled in a cold trap that is between the oven and a vacuum pump.
-Drying liquids from porous materials It is difficult to dry them.
-Low down the drying temperature so as not to damage the components of the material
* For example, when drying food so as not to damage the ingredients of the food, dry in a vacuum oven.
* For example, when drying cannabis with ethanol, work with a vacuum oven that does not harm the active plant substance extracted from the cannabis.
* For example when drying plastic or other materials that may be melted.
Choosing a vacuum pump for a vacuum oven:
Select a pump according to the required vacuum depth, the desired pump capacity is 3 times the volume of the oven, if the volume of the oven is 50 liters, a pump with a flow rate is desirable. Of 150 liters per minute. The lower the flow the longer it will take for the oven to reach the desired vacuum. Depending on the process an oil pump, an oil-free pump and a chemical-protected pump should be chosen.
Working in a Vacuum Oven can:
-Avoid reactions such as oxidation or decarburization.
-Remove surface contaminants.
-add a substance to the surface layers of the work.
-Removal of contaminants by degassing.
In a laboratory, a product could get contaminated with trapped particles. The extraction of these trapped solvents, volatile impurities, gas, and water is the work of a laboratory vacuum oven. These multipurpose ovens typically have temperatures between 40°C and 240°C.
The vacuum chamber is the vacuum oven's most important part. Pressure is decreased in the chamber. As a result, substances have lower boiling points and may now evaporate at lower temperatures. This reduces compound loss to a minimum.
The lowering of pressure takes place in the vacuum oven’s chamber. Once the low pressure is reached, substances have lower boiling points and evaporate at lower temperatures. This reduces compound loss to a minimum. Vacuum ovens are extremely adaptable tools with uses in industry, engineering, and laboratory research. They are usually used for outgassing, desiccating, measuring moisture, and drying.
Benefits of a Vacuum Oven
• Vacuum drying reduces drying time, eliminates the potential for oxide thermal explosions, and prevents powder samples from being blown around by moving air.
• The lab vacuum oven is also perfect for drying difficult-to-dry materials like powder or granular ones.
• Because of lowering of the boiling point, lab vacuum ovens are excellent for drying materials that are sensitive to temperature.
• They carefully and at low temperatures dry thermodynamically unstable materials.
Distinguishing features between a hot air oven and a vacuum oven
The method utilised for drying differs significantly between the two ovens. In contrast to a hot air oven, which warms samples using hot air, a vacuum oven involves vacuum pumping during heating activities for removal of air.
Chemical Compatibility Database
Uses
Vacuum ovens are widely used in many industries for various applications such as drying, outgassing, aging tests, chemical resistance studies, vacuum storage, moisture removal, parts cleaning, curing, bubble removal, and inert atmosphere processing. These processes are essential to ensure that the materials being processed are of high quality and meet the required specifications. In this article, we will discuss each of these processes in more detail.
Drying:
Drying is a process that involves the removal of moisture from a substance. This process is essential in many industries, such as food processing, pharmaceuticals, and materials science. In a vacuum oven, the drying process is carried out by subjecting the substance to low pressure and high temperature. This process allows for the moisture to be removed more efficiently than in a regular oven.
Vacuum ovens are commonly used for drying solvents because they allow for more efficient and controlled removal of the solvent than traditional ovens or air-drying methods. When a solvent is dried in a vacuum oven, the pressure inside the oven is reduced, which lowers the boiling point of the solvent. As a result, the solvent evaporates more quickly and at a lower temperature than it would under normal atmospheric pressure. This reduces the risk of heat damage to the solvent or any heat-sensitive materials being dried, such as certain polymers or biological samples.
Additionally, the low pressure inside the vacuum oven helps to remove any residual solvent that may remain in the material being dried. This is particularly important in applications where the presence of residual solvents could affect the performance or quality of the final product, such as in the manufacture of pharmaceuticals or electronic components.
Outgassing:
Outgassing is a process that involves the removal of volatile components from a substance. This process is particularly important in materials science and electronics manufacturing. In a vacuum oven, outgassing is achieved by exposing the substance to low pressure for an extended period of time. This process allows for the volatile components to be removed, leaving a more stable substance.
Aging Tests:
Aging tests are used to determine how a substance will behave over time. This process is particularly important in the pharmaceutical and food industries. In a vacuum oven, aging tests are carried out by exposing the substance to high temperatures and low pressure for an extended period of time. This process allows for the substance to be tested under extreme conditions, which can help to identify any potential problems that may arise over time.
Chemical Resistance Studies:
Chemical resistance studies are carried out to determine how a substance will react to different chemicals. This process is particularly important in the materials science and pharmaceutical industries. In a vacuum oven, chemical resistance studies are carried out by exposing the substance to different chemicals under low pressure and high temperature. This process allows for the substance to be tested under extreme conditions, which can help to identify any potential problems that may arise when the substance is exposed to different chemicals.
Vacuum Storage:
Vacuum storage is a process that involves storing a substance under low pressure. This process is particularly important in the food and pharmaceutical industries, where it is important to maintain the quality of the substance over an extended period of time. In a vacuum oven, vacuum storage is achieved by subjecting the substance to low pressure and high temperature. This process helps to remove any remaining moisture from the substance, which can help to prevent spoilage.
Moisture Removal:
Moisture removal is a process that involves the removal of moisture from a substance. This process is particularly important in the materials science and electronics manufacturing industries. In a vacuum oven, moisture removal is achieved by subjecting the substance to low pressure and high temperature. This process allows for the moisture to be removed more efficiently than in a regular oven.
Parts Cleaning:
Parts cleaning is a process that involves the removal of contaminants from a substance. This process is particularly important in the electronics manufacturing and automotive industries. In a vacuum oven, parts cleaning is achieved by subjecting the substance to low pressure and high temperature. This process allows for the contaminants to be removed more efficiently than in a regular oven.
Curing:
Curing is a process that involves the hardening of a substance. This process is particularly important in the materials science and construction industries. In a vacuum oven, curing is achieved by subjecting the substance to high temperature and low pressure. This process allows for the substance to be cured more efficiently than in a regular oven.
Bubble Removal:
Bubble removal is a process that involves the removal of bubbles from a substance for example epoxy casting. This process is particularly important in the electronics manufacturing and materials science industries. In a vacuum oven, bubble removal is achieved by subjecting the substance to low pressure and high temperature.
Main Manufacturer:

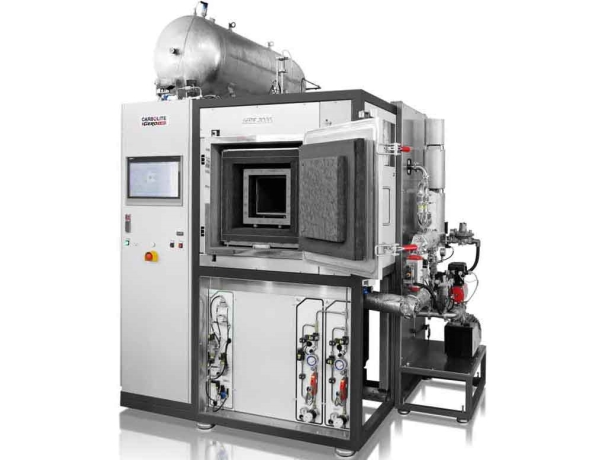

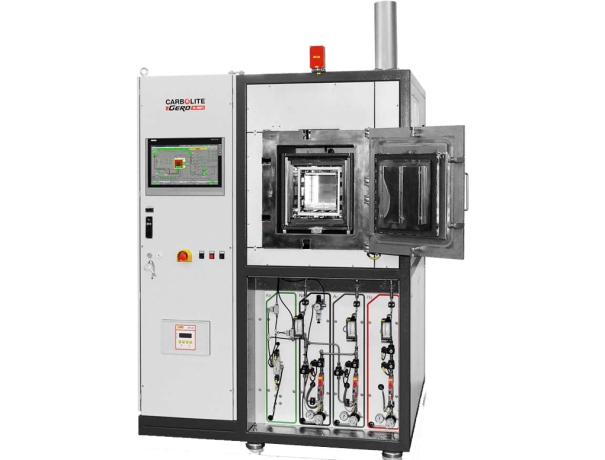

CARBOLITE GERO
-Carbolite Gero-One of the top manufacturers of ovens
-80 years experience
-Carbolite Gero is a leading manufacturer of high temperature furnaces and ovens from 30°C to 3000°C
